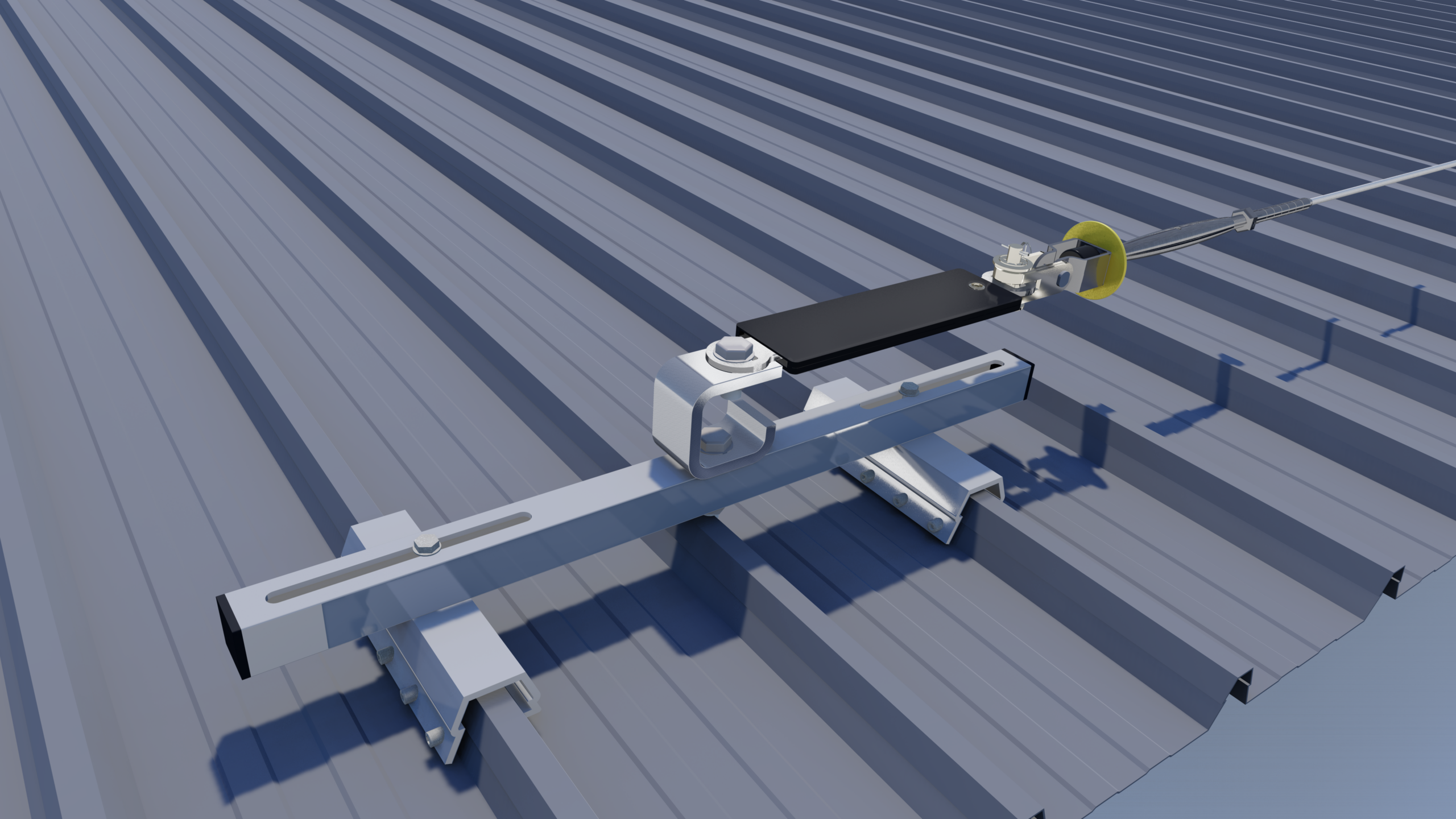

Lifeline on Kliploc Roof

Lifeline Configurations

Horizontal Lifeline on Kliploc Roof

Groxx Kliloc Roof Lifeline | GRXKLHLL Non-Penetrative Fall Protection System The Groxx GRXKLHLL is a premier, non-penetrative horizontal fall protection solution specifically engineered for Kliloc and concealed-fix roof profiles. This system combines the lightweight strength of structural aluminum w…

StandardDesigned to EN 795:2012 Type C (horizontal flexible line) + CEN/TS 16415 — certificate on request
SKUGRXKLHLL

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

Groxx Kliloc Roof Lifeline | GRXKLHLL Non-Penetrative Fall Protection System

The Groxx GRXKLHLL is a premier, non-penetrative horizontal fall protection solution specifically engineered for Kliloc and concealed-fix roof profiles. This system combines the lightweight strength of structural aluminum with the extreme durability of 316 stainless steel, providing a continuous, multi-user safety line that preserves the structural and watertight integrity of the building envelope.

System Overview & Performance

  • Zero-Penetration Mounting: The GRXKLHLL utilizes a specialized non-invasive clamping mechanism that grips the Kliloc roof ribs without drilling, rivets, or piercing. This ensures the roof’s thermal performance, weatherproofing, and manufacturer warranties remain fully intact.
  • Integrated Energy Management: At the heart of the system are specialized I-Bracket and H-Frame posts featuring built-in deformation technology. In the event of a fall, these posts absorb kinetic energy, significantly reducing the impact load transferred to both the worker and the Kliloc roof substrate.
  • Seamless Navigation: Equipped with high-performance sliders and aerodynamic intermediate guides, the system allows users to traverse the entire length of the roof, including corners and transitions, without ever needing to disconnect (100% tie-off).
  • Multi-User Capability: Rigorously tested and rated for up to 4 simultaneous users, making it an ideal solution for large-scale industrial maintenance, HVAC servicing, and rooftop solar panel installations.

Technical Specifications

Feature Specification
Model Number GRXKLHLL
Compatible Substrate Kliloc & Concealed-Fix Roof Profiles
Standard Designed to EN 795:2012 Type C (horizontal flexible line) + CEN/TS 16415 — certificate on request
EN requirementStatic test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415)
Primary Materials Structural Aluminum & AISI 316 Stainless Steel
Mounting Mechanism Non-Penetrative Kliloc Rib Clamps
Energy Absorption Deformable I-Bracket & H-Frame Posts
User Capacity Up to 4 Simultaneous Users
System Orientation Horizontal / Surface-Mounted

Installation & Substrate Interface

  • Non-Invasive Attachment: Precision-engineered clamping assemblies secure directly onto the raised seams of the Kliloc profile without puncturing the metal skin, maintaining a 100% leak-proof system.
  • Structural Safety Margin: Load-distributing base plates ensure peak dynamic forces during a fall arrest event are spread safely across multiple Kliloc ribs.
  • Corrosion Resistance: Marine-grade 316 stainless steel cable and aluminum components guarantee an extended operational service life in harsh industrial or coastal environments.

The Groxx Advantage

The GRXKLHLL Kliloc Lifeline solves the primary challenge of modern metal roof maintenance: providing uncompromising multi-user safety without voiding roof warranties. By combining non-penetrative clamping technology with dynamic shock-absorbing posts, Groxx delivers a streamlined, low-maintenance safety asset built specifically for Kliloc roof architectures.

Included components

11 parts in this configuration
