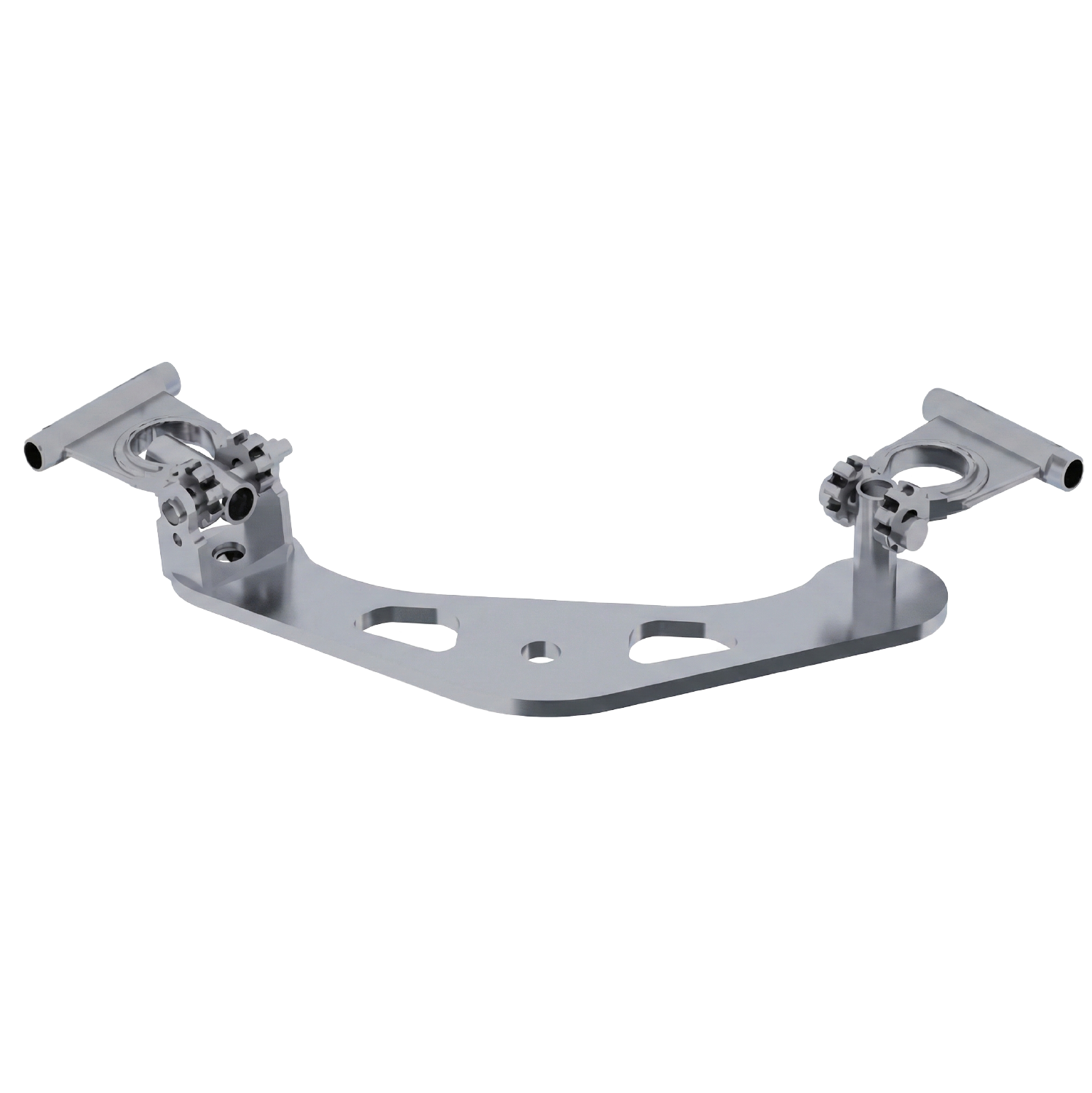

The Groxx Corner Bracket (Model NO: GGCB049) is a premium, heavy-duty intermediate structural support component designed for permanent, flexible horizontal cable lifeline systems. Engineered to guide safety lines around structural perimeters, this multi-angle ring bracket delivers outstanding load-bearing capacity and architectural adaptability, keeping maintenance personnel secure while traversing tricky corner geometries and high-altitude work zones.
Multi-Angle & Flexible Adaptation: Features an adjustable orientation architecture that allows the lifeline system to flex and adapt seamlessly to a variety of custom structural curves, building corners, and irregular workspaces.
Integrated Strand Protection & Repair Support: Must be used alongside curved internal steel pipe fittings to securely route the steel cable. If localized cable wear or broken strands are detected, the bracket’s fixed support sleeve can be precisely repositioned to reinforce the damaged zone—protecting the wire rope and significantly extending the lifetime of the installation.
Secondary Anchorage Point Capability: In standard horizontal lifeline configurations, the robust center middle bracket is engineered with sufficient structural reserve to double as a temporary, standalone fall arrest anchorage point.
Heavy-Duty Load Distribution: Built to withstand intense multi-directional vector forces, ensuring structural stability at high-risk transition points.
| Feature | Specification |
| Model Number | GGCB049 (Ref Material Codes: A2 / A4 Series) |
| Product Classification | Type C Intermediate Multi-Angle Anchor |
| Material Composition | Premium Stainless Steel 304 / 316 |
| Cable Diameter Compatibility | 8mm |
| Overall Dimensions ($L \times W \times H$) | 435 x 140 x 135 |
| Rated Ultimate Load | 23 kN |
| Fulfillment Capacity | Rated for up to 2 people concurrently |
| Fixing Method | High-Torque Bolt Fastening |
| Unit Weight | 2 kg |
The GGCB049 is forged entirely from high-grade stainless steel to provide extreme durability against corrosive elements. It is backed by variable operational validation life periods based on material choice:
Grade 304 Stainless Steel: Offers a 10-year conditional validity period, well-suited for standard commercial rooftops and dry industrial manufacturing plants.
Grade 316 Stainless Steel: Offers an extended 20-year conditional validity period, specifically optimized for harsh offshore platforms, marine environments, and chemical refineries.
Mandatory Maintenance: This assembly requires a professional technical safety inspection at least once every twelve (12) months to verify component integrity, bolt torque limits, and system compliance.
The corner bracket layout is structurally certified to comply with the primary European and global standards for multi-user personal fall arrest devices:
EN 795:2012 Type C: Certified as a compliant, permanent structural anchor component for flexible wire rope horizontal lifelines.
CEN/TS 16415:2013 Type C: Fully validated for multi-user safety architectures, ensuring complete structural holding capacity when supporting concurrent loads from two operators.
The GGCB049 Corner Bracket bridges the gap between raw load containment and structural versatility. While standard intermediate brackets are restricted to straight lines, this 23 kN rated stainless steel marvel gives engineers the freedom to route a single, unbroken lifeline around entire building perimeters. Its clever sleeve-repositioning logic reduces lifecycle maintenance costs by protecting expensive steel cables at their highest-wear friction points, guaranteeing smooth, continuous, and zero-compromise safety tracking.
