G - Bracket
Description

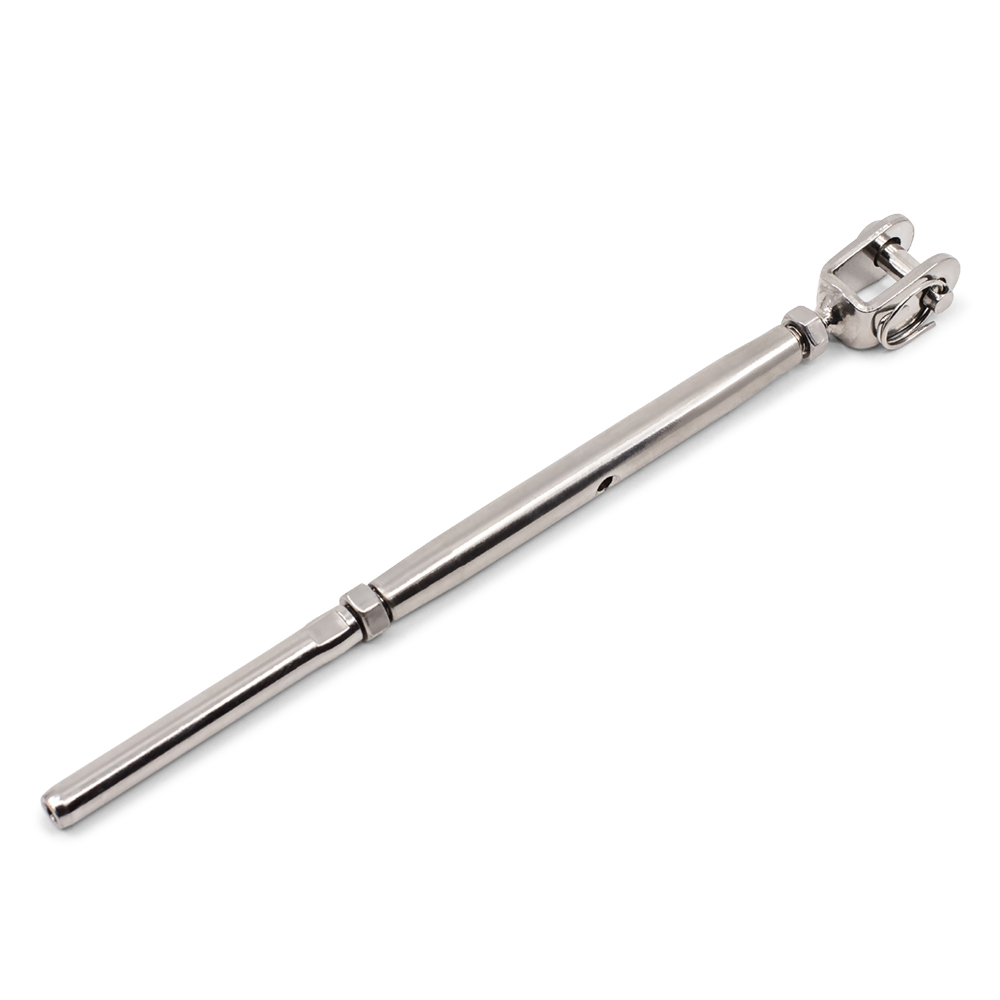

GGJT002 – Swaged Tensioner with Tension Force Indicator for 8mm Wire (GGJT002 System)
Key Features
Serves as a connecting component between the cable and the energy absorber.
Enables cable adjustment and tensioning to maintain a taut horizontal lifeline.
Equipped with a tension force indicator plate that begins to rotate once the correct tension level is achieved.
Includes cable sealing to prevent unintentional rotation caused by vibrations.
Minimum contracted length: 450.9 mm
Maximum extended length: 546.4 mm
Designed for use with 8 mm 7×19 stainless steel wire.
Material
Tensioner body: 316 stainless steel, electro-polished
Minimum breaking strength: 25 kN
Weight
1.100 kg ± 0.020 kg
Certification
Complies with EN795:2012 Type C as part of the GGJT002 System specifications.
