Anchor Point
VRC Anchor
VRC ANCHOR – SKU: GGVRC044 The VRC Anchor is a versatile fixed anchorage point designed for installation on steel, concrete, and wood structures. It features a pre-fabricated M16 thread, allowing compatibility with multiple fixing methods such as expansion bolts, chemical anchors, or welding. The an…
Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.
Specifications
| Standard | Designed to EN 795:2012 Type A + CEN/TS 16415 — certificate on request |
| EN requirement | Static test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415) |

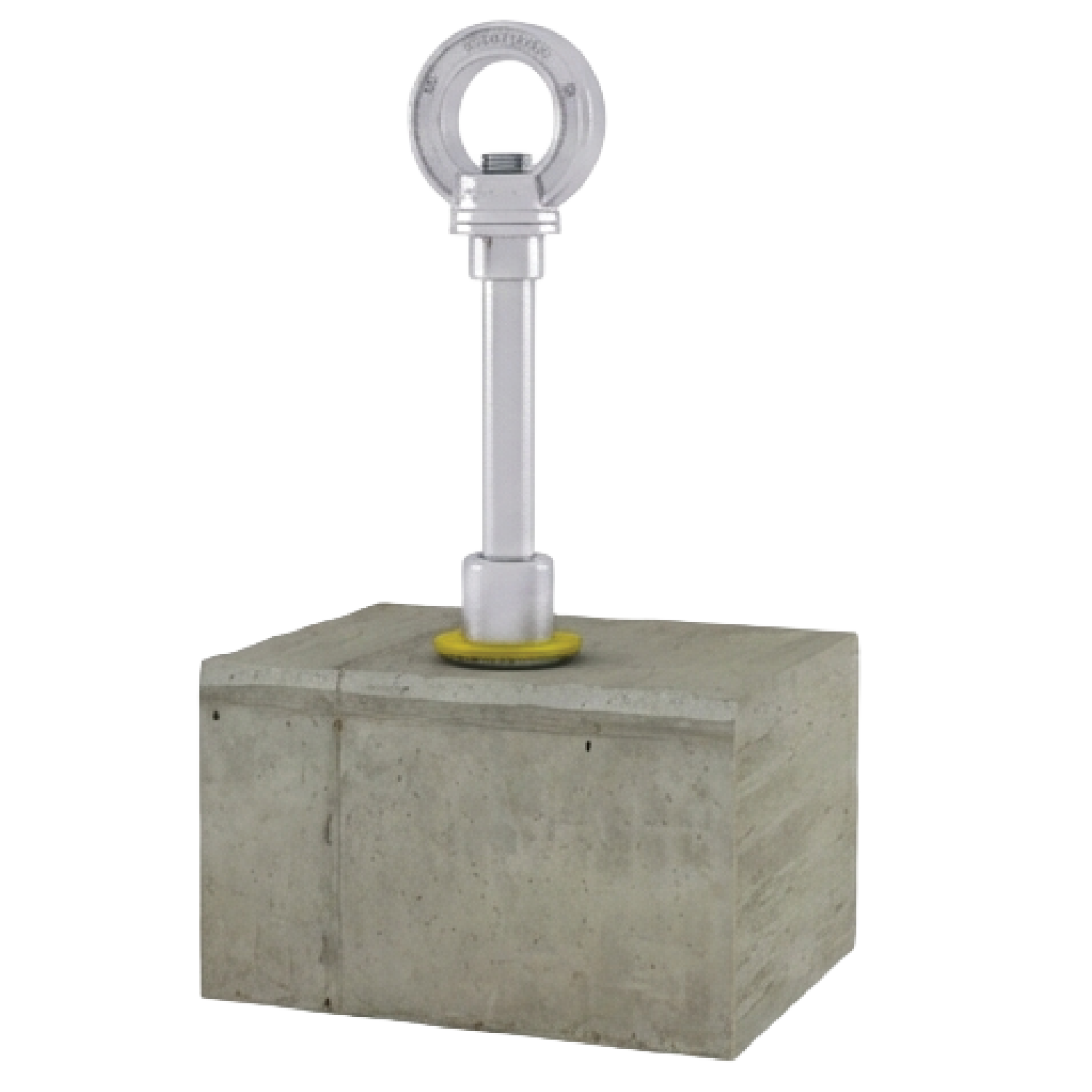

VRC ANCHOR – SKU: GGVRC044
The VRC Anchor is a versatile fixed anchorage point designed for installation
on steel, concrete, and wood structures. It features a pre-fabricated M16 thread,
allowing compatibility with multiple fixing methods such as expansion bolts,
chemical anchors, or welding. The anchor can also be easily integrated with other
anchorline attachment systems. Its anti-loosening flange design ensures secure
fastening and long-term stability across various applications.
FEATURES
• The VRC Anchor is made of 316 stainless steel with a metallic gray finish.
• The inner diameter measures Ø48 mm.
• The anchor is rated for up to two users.
• The service life is up to 20 years under specified conditions.
• The product comes with a 1-year warranty.
INSTALLATION
• Bolted installation (including chemical anchors, expansion bolts, and standard bolts)
• Welded installation
MATERIAL
• Material: 316 Stainless Steel
• Finish: Metallic Gray
WEIGHT
• 366 g
STRENGTH
• The maximum load capacity is 32 kN.
Request a quote
Tell us about your site.
Share your structure and scope. Our team will come back with a compatible, certified system.
