Groxx H-Frame Bracket | GGHG010 Reinforced Intermediate Anchor The Groxx H-Frame Bracket is a heavy-duty, multi-point intermediate anchorage solution engineered for high-load horizontal lifeline systems on standing seam and Kliplok® roof profiles. By evolving the traditional “I” design into a robust…
Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.
Specifications

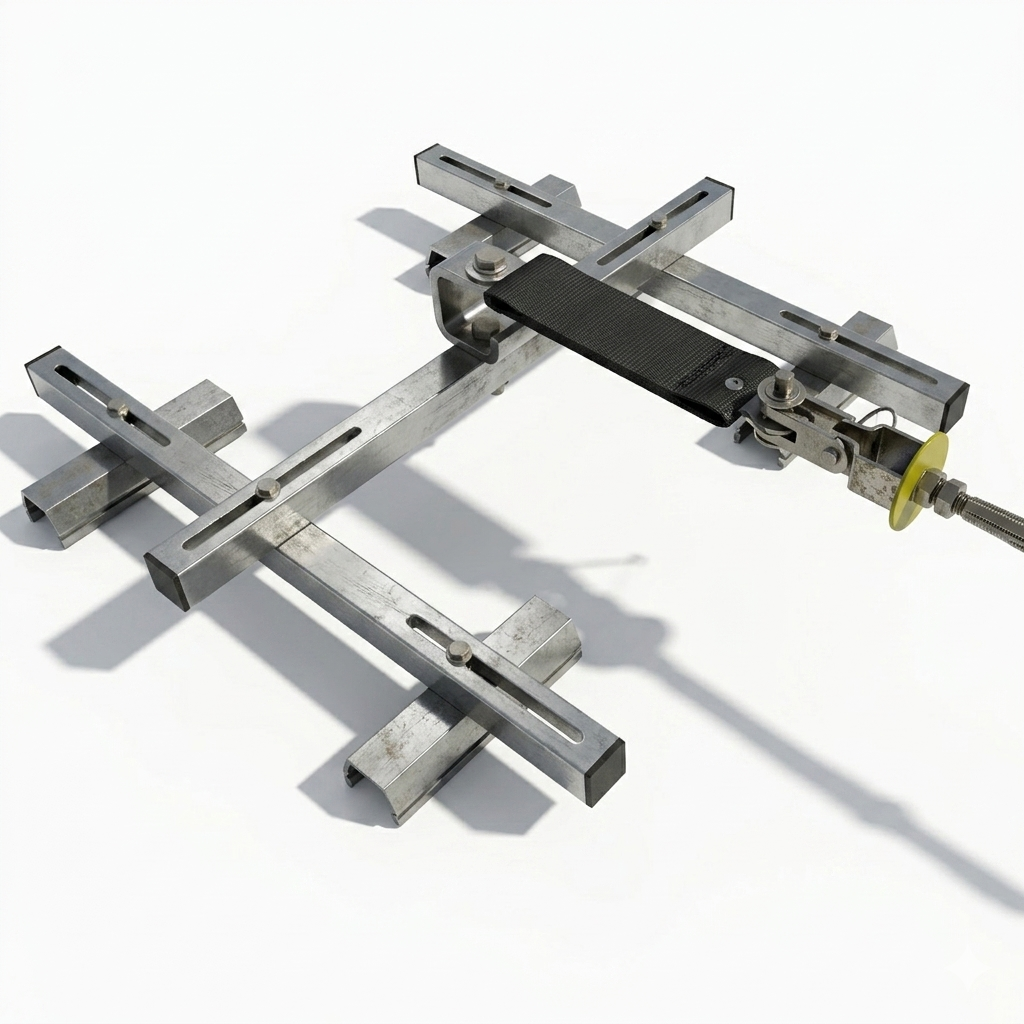

Groxx H-Frame Bracket | GGHG010 Reinforced Intermediate Anchor
The Groxx H-Frame Bracket is a heavy-duty, multi-point intermediate anchorage solution engineered for high-load horizontal lifeline systems on standing seam and Kliplok® roof profiles. By evolving the traditional “I” design into a robust H-configured frame, this bracket provides a significantly larger footprint, distributing forces across four points of contact for maximum structural security.
Key Features & Performance
- Quad-Point Security: The signature H-shaped geometry utilizes four connection points rather than two. This architectural upgrade drastically increases pull-out strength and provides superior stability against multi-directional forces.
- Superior Load Distribution: By anchoring to the roof across a wider surface area, the H-Frame minimizes the stress on individual roof seams, making it the ideal choice for thin-gauge metal profiles or high-capacity systems.
- Integrated Energy Absorber: Features a central, built-in shock-absorbing post that deforms predictably during a fall. This “controlled collapse” technology protects both the user and the roof’s integrity by dissipating peak impact loads.
- High-Capacity Multi-User Rating: Specifically designed and tested to support up to 4 simultaneous users, providing a safe working environment for entire maintenance teams.
- Non-Penetrative Protection: Used in conjunction with specialized seam clamps, the H-Frame secures the lifeline without piercing the roof sheet, ensuring the building remains thermally efficient and 100% watertight.
Material Specifications
| Component | Material & Grade | Finish |
|---|---|---|
| H-Frame Chassis | 6061-T6 Structural Aluminum | Heavy-Duty Anodized |
| Central Anchor Point | 316 Stainless Steel | High Polish |
| Standard | EN 795:2012 Type A + CEN/TS 16415 | |
| EN requirement | Static test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415) | |
| Seam Clamps | 6005-T5 Aluminum | Anodized |
| Mounting Hardware | M10 SS316 (Grade A4-70) | Natural |
Technical Data & Compliance
- Minimum Breaking Strength (MBS): 15 kN (Enhanced stability via 4-point mounting)
- Adjustable Span: Accommodates seam distances from 320mm to 750mm.
- Global Standards:
-
EN 795:2012 Type A (Single point anchors)
- TS 16415:2013 Type A (Multi-user requirements)
- AS/NZS 5532:2013 (Rated for total fall protection safety)
-
The Groxx H-Frame Advantage
While standard brackets rely on a linear connection, the Groxx H-Frame reimagines roof safety through redundancy and grip. The four-point clamp configuration provides a “fail-safe” grip on the standing seams, ensuring that even under extreme tension or dynamic fall loads, the bracket remains immovable. Combined with marine-grade 316 Stainless Steel and an anodized aluminum frame, it offers the highest strength-to-weight ratio in its class, specifically tailored for extreme industrial environments.
Note: This product is the H-Frame mounting assembly. Clamps and lifeline cable components are sold separately to allow for custom system configuration.
