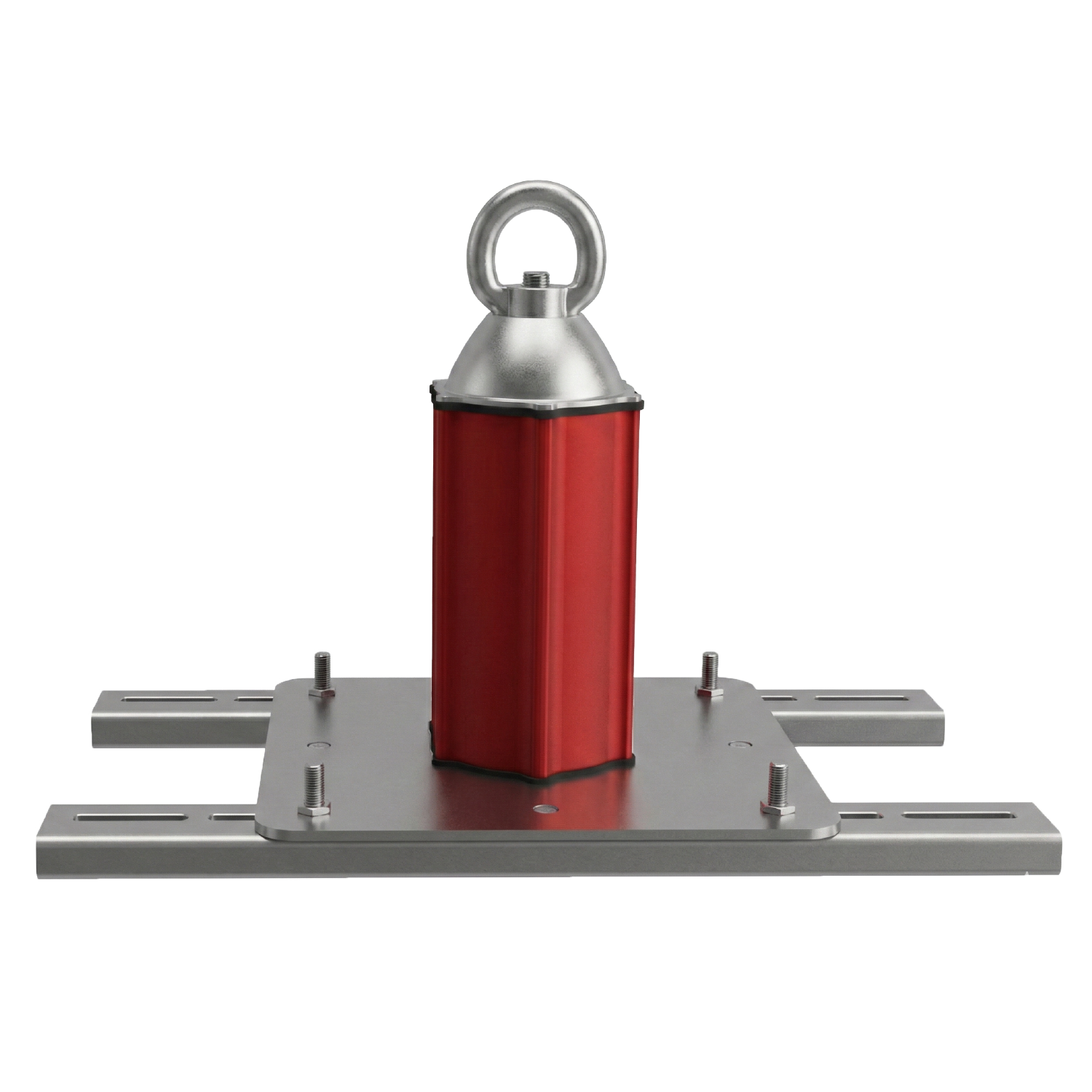

Groxx Trapezoidal Roof Anchor | GGIMEA052 Integrated Lifeline Pedestal
The Groxx Trapezoidal Roof Anchor (GGIMEA052) is a sophisticated, elevated anchorage solution specifically engineered for profiled metal roofing. Designed to function as a critical terminal or intermediate point for horizontal lifelines, this anchor combines advanced load distribution with an internal energy management system. Its unique “progressive failure” design provides a vital safety margin by deforming predictably under extreme force without sudden structural collapse.
Core Performance & Design
- Dynamic Energy Buffering: The pedestal features an internal spring mechanism that provides elastic support. This system absorbs and dissipates dynamic energy during a fall event, reducing the impact force transmitted to the fragile roof substrate.
- Progressive Failure Safety: Engineered for safety through intelligence, the anchor is designed to exhibit visible deformation under excessive loads. This “safety warning” alert allows for immediate identification of a compromised system before a catastrophic failure occurs.
- Superior Waterproofing Integrity: To eliminate the risk of leaks, the system utilizes integrated waterproof gaskets between the aluminum alloy housing and the baseplate. The use of AL sealed blind rivets and EPDM sealing washers ensures a hermetic seal against rainwater backflow.
- Modular Maintenance: The aluminum alloy housing is independent of the internal energy-absorbing spring. This modularity allows for individual disassembly, inspection, and maintenance without necessarily decommissioning the entire base assembly.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | GGIMEA052 |
| Primary Material | AISI 316 Stainless Steel & Aluminum Alloy |
| Standard | Designed to EN 795:2012 Type C (horizontal flexible line) + CEN/TS 16415 — certificate on request |
| EN requirement | Static test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415) |
| System Weight | 6.75 kg |
| Safe Load Capacity | 10 kN (on 0.45mm sheet) / 11 kN (on 0.63mm panel) |
| Height | 254 mm |
| Baseplate Dimensions | 360 mm x 380 mm |
| User Rating | Up to 4 Users |
Installation & Substrate Interface
- Profiled Metal Substrates: Optimized for single-skin profiled sheets (min. 0.45mm) and top skins of sandwich panels (min. 0.63mm).
- Structural Fixing: The system is secured using 16 AL Sealed Blind Rivets (7.8×28 mm) or specialized waterproof self-tapping screws. This multi-point fixing pattern ensures maximum load distribution across the trapezoidal ribs.
- Purlin Integration: Suitable for installation over various structural supports, including Z/C-sections, H-beams, and steel trusses.
- Zero Porosity Construction: Features full-penetration welding at both ends of the critical components to ensure absolute weld strength and environmental resistance.
Standards & Compliance
The GGIMEA052 is designed to meet demanding global safety benchmarks for rooftop fall protection:
- Multi-User Certified: Rated to support up to 4 simultaneous users, making it an efficient choice for large-scale industrial roof maintenance.
- Extended Service Life: Offers a validity period of 10 years for 304-grade variants and up to 20 years for 316-grade variants in aggressive or high-salinity environments.
The Groxx Advantage
The GGIMEA052 Pedestal Anchor solves the primary challenge of rooftop safety: protecting the worker without destroying the roof. By integrating high-capacity energy absorption into a waterproof, modular chassis, Groxx provides a long-term safety asset that preserves the building’s structural and weatherproofing integrity.
