Swageless Tensioner

Overhead Lifeline

Swageless Tensioner

Groxx Swagless Tensioner | GGST004 High-Efficiency Cable Fall Arrest Termination Component The Groxx Swagless Tensioner (Model NO: GGST004) is a premium, high-strength industrial cable termination and adjustment device engineered for flexible horizontal and vertical wire rope lifeline systems. Funct…

StandardEN 795:2012 Type C (horizontal flexible line) + CEN/TS 16415
SKUGGST004

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

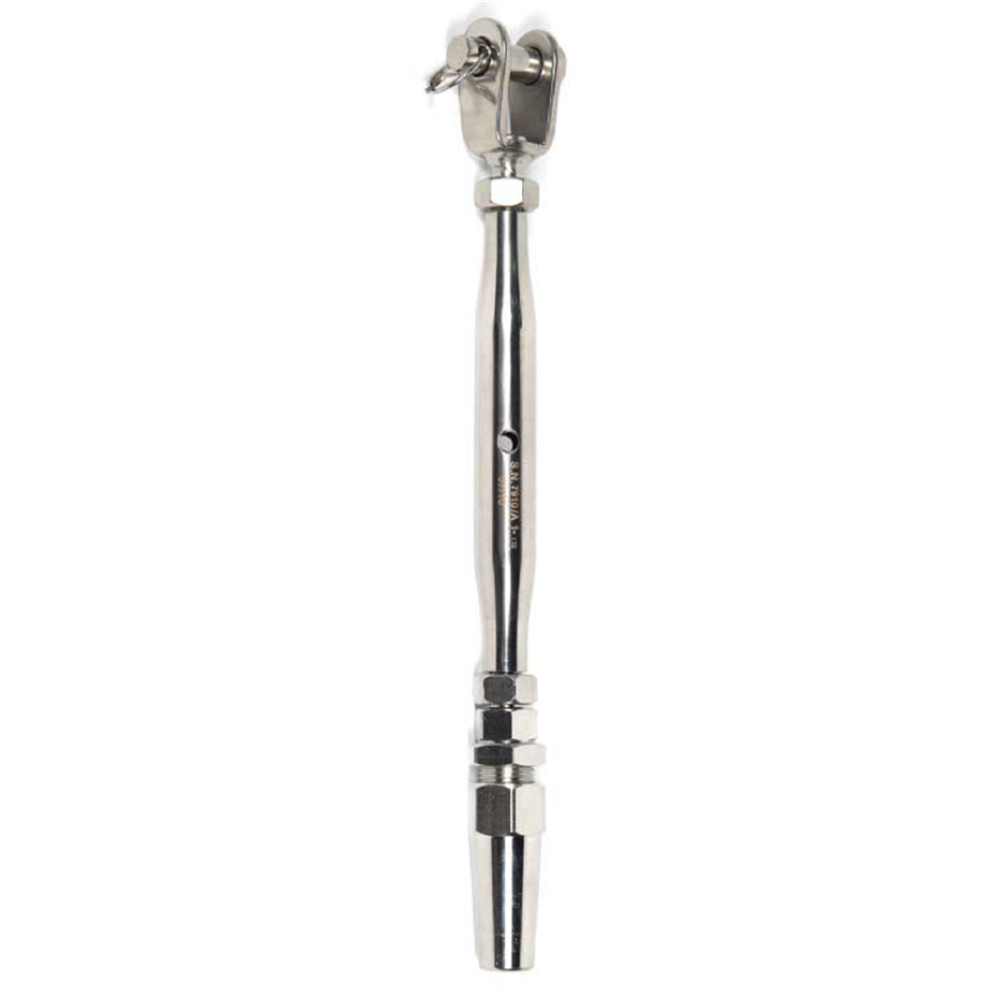

Groxx Swagless Tensioner | GGST004

High-Efficiency Cable Fall Arrest Termination Component

The Groxx Swagless Tensioner (Model NO: GGST004) is a premium, high-strength industrial cable termination and adjustment device engineered for flexible horizontal and vertical wire rope lifeline systems. Functioning as a critical structural inline connector, this specialized component bridges the system’s flexible cable to its force-damping energy absorber or end-anchor brackets. It provides both fine-tuned line tension calibrations and tool-free field installations.

Core Performance Features

  • Tool-Free Field Termination: Features an advanced internal swagless compression mechanism that allows for instant, high-integrity terminations directly on-site without requiring hydraulic crimping machines or specialized swaging tools.
  • Integrated Line Tension Calibration: Serves as a continuous adjustment module, allowing installers to fine-tune pre-tensioning across the wire rope matrix to minimize dynamic cable sag over long spans.
  • Vibration-Proof Anti-Rotation Lock: Engineered with an anti-vibration cable sealing lock that prevents the tensioner assembly from backing out or unthreading when subjected to constant architectural wind currents or building vibration.
  • Universal 8mm Wire Optimization: Specifically tailored to terminate standard Ø 8mm stainless steel wire ropes, making it highly versatile for structural building envelopes and industrial roof spaces.

Technical Specifications

Feature Specification
Product Model GGST004
Material Build Marine-Grade Stainless Steel
Standard EN 795:2012 Type C (horizontal flexible line) + CEN/TS 16415
EN requirementStatic test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415)
Cable Diameter Compatibility 8 mm Wire Rope Only
Minimum Breaking Strength (MBS) 25 kN
Unit Weight 0.988
Fulfillment Mode Swagless Compression Sleeve Terminal

Compliance & International Standards

The Swagless Tensioner is structurally calculated and tested to satisfy international safety regulations for personal protective equipment (PPE) and flexible horizontal anchor devices:

  • EN 795:2012 Type C: Certified under European standards as an integrated structural component for flexible anchor lifelines.
  • CEN/TS 16415:2013: Fully validated for multi-user safety architectures, ensuring system integrity is held even under concurrent fall arrest dynamic loads across continuous lines.

The Groxx Advantage

  • Extreme Tensile Rating: Boasting a robust 25 kN minimum breaking strength, the hardware vastly exceeds typical single-user safety thresholds, introducing a substantial engineering safety factor into the lifeline layout.
  • Reduced Labor Footprint: By replacing slow, error-prone manual swaging with a high-torque mechanical grip thread, field installation times are slashed, enabling fast on-site terminations irrespective of high-altitude geometry constraints.
  • Marine-Grade Durability: Forged from high-grade stainless steel to resist localized pitting and galvanic corrosion, keeping internal adjustment threads fluid and operational over long service intervals.
