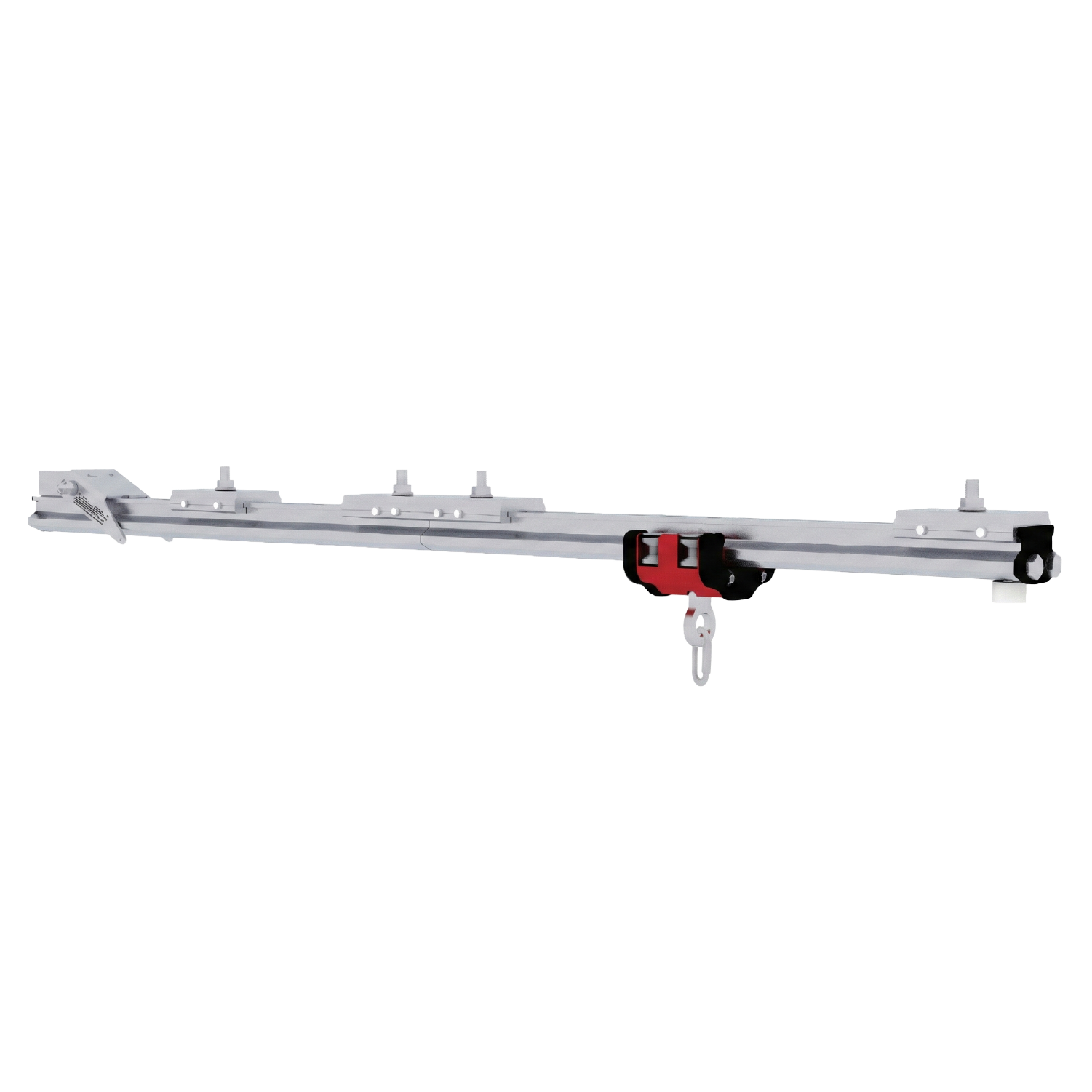

Groxx Rigid Rail Lifeline System
Model No: GGHVB062
The Groxx GGHVB062 is a comprehensive rigid rail fall protection architecture engineered for horizontal, vertical, and bevel (HVB) applications. Designed for maximum versatility, this system provides a continuous, high-stability load path for personnel engaged in inspection, maintenance, and structural cleaning tasks across industrial and architectural landscapes.
System Architecture & Operational Mechanics
- Rigid Rail Structure: Utilizing high-rigidity aluminum alloy profiles, the system provides superior structural stability with minimal sway or deflection compared to traditional cable-based lifelines.
- Non-Disconnection Transit: The system features precision-engineered shuttle technology that passes seamlessly through intermediate brackets. This ensures 100% tie-off connectivity, eliminating the risk associated with manual detachment or re-hooking during transition points.
- Multi-User Capability: The GGHVB062 is dynamically tested to support multiple users working simultaneously, provided the system configuration and support spacing adhere to the calculated engineering design.
- Kinetic Interface: The rail is fully compatible with standard Personal Protective Equipment (PPE), including Self-Retracting Lifelines (SRLs) and safety lanyards, maintaining a constant and reliable safety link.
Technical Specification Matrix
| Component | Technical Function | Material Spec |
| Main Rail | Rigid anchorage line and load-bearing track | Aluminum Alloy |
| Rail Support | Secures rail to structure; controls span and stiffness | 304 SS / Aluminum |
| Standard | EN 795:2012 Type D (horizontal rigid rail) + CEN/TS 16415 | |
| EN requirement | Static test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415) | |
| Rail Traveler | Mobile anchor point with low-resistance bearings | 304 SS / ABS / AL |
| Rail Bumper | End-of-line elastic energy absorber | 304 SS / Silicone |
| End Terminal | Anti-detachment safety stopper | High-Grade Aluminum |
Mechanical Data Summary
- Safe Load Capacity: 12 kN
- Safety Factor: 1.5
- Material Integrity: Constructed from AISI 304/316 Stainless Steel and High-Grade Aluminum (AL) variants for maximum corrosion resistance in aggressive environments.
- Operational Validity: 10-year lifespan, contingent upon mandatory annual professional recertification and maintenance.
Installation & Substrate Interface
- Structural Connection: The system is secured to primary load-bearing members (beams, purlins, or concrete slabs) via intermediate brackets to form a continuous load path.
- Concrete Application: For slab mounting, the system utilizes the GRX851 Chemical Anchor to create a tension-free molecular bond, maximizing pull-out resistance.
- Alignment Precision: Tracks must be installed with smooth, burr-free joints. An allowable installation misalignment angle of 15 degrees is strictly enforced to ensure the traveler shuttle operates without jamming.
- Terminal Safety: All rail ends must be equipped with an anti-detachment end terminal and an elastic rail bumper to protect the shuttle and the user from hard-stop impacts.
Compliance & Standards
The GGHVB062 system is engineered and tested to meet the most rigorous international safety requirements:
- EN 795:2012 Type D: Certified for rigid anchor lines (Personal fall protection).
- CEN/TS 16415:2013: Certified for multi-user safety applications (supporting up to 3 users per span).
The Groxx Advantage
By eliminating the dynamic “sag” found in flexible cable systems, the GGHVB062 significantly reduces the required fall clearance. This makes it the premier solution for facilities with low-headroom or where precise, restricted movement is necessary for worker safety and operational efficiency.
