Rail Lifeline
Rail Stopper
The GRXRLS24010 Stopper is a critical safety component for rigid rail lifeline systems. It is engineered to provide a secure terminal point at the end of the rail, preventing the accidental detachment of the mobile anchor (shuttle/slider) and ensuring continuous worker safety. Product Overview Funct…
Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.
Specifications

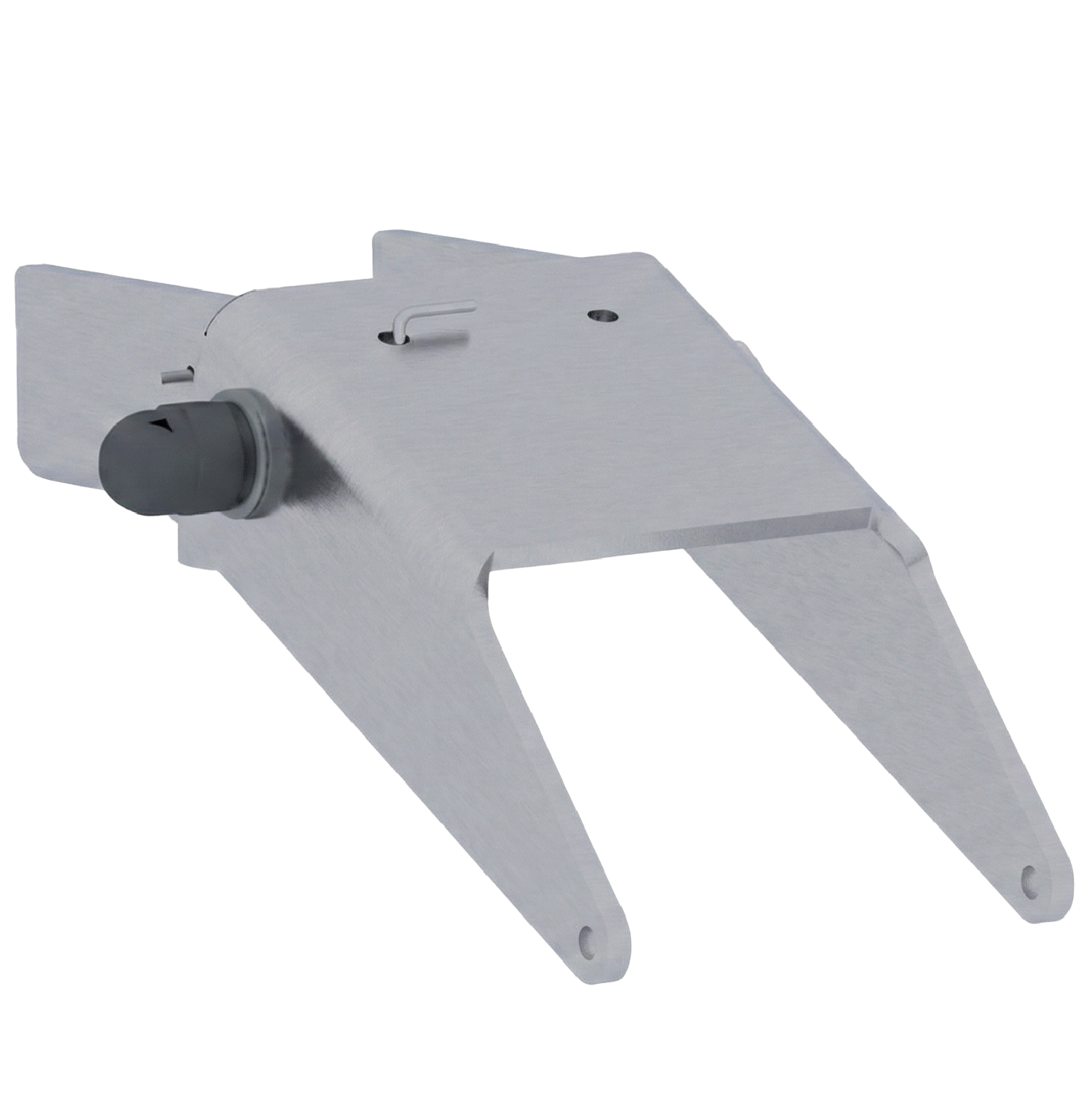

The GRXRLS24010 Stopper is a critical safety component for rigid rail lifeline systems. It is engineered to provide a secure terminal point at the end of the rail, preventing the accidental detachment of the mobile anchor (shuttle/slider) and ensuring continuous worker safety.
Product Overview
- Function: Fixed at the rail termination to secure the slider within the system.
- Features: Optimized geometry for easy shuttle insertion and removal.
- Key Points: Features a high-reliability anti-release structure to withstand dynamic impact.
Technical Specifications
| Attribute | Specification |
|---|---|
| Serial Number | GRXRLS24010 |
| Material | High-grade Aluminum Alloy (AL) |
| Standard | EN 795:2012 Type D (horizontal rigid rail) + CEN/TS 16415 |
| EN requirement | Static test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415) |
| Weight | 0.522 kg |
| Safe Load (Fsafe) | 12 kN |
| Safety Factor | 1.5 |
Physical Dimensions
The following dimensions ensure compatibility with standard industrial rail profiles:
- Width (B): 39 mm
- Height (H): 64 mm
- Length (L): 151 mm
Compliance & Certification
This stopper meets rigorous international safety standards for fall protection equipment:
- EN 795:2012, Type D: Certified for 1 person.
- CEN/TS 16415:2013: Certified for up to 3 persons.
- Validity Period: 10 Years.
Installation & Maintenance
- Placement: Must be installed at both ends of the rigid rail.
- Inspection: Regularly check the fastening bolts and the integrity of the anti-release mechanism.
- Compatibility: Designed specifically for use with aluminum (AL) rail systems.
