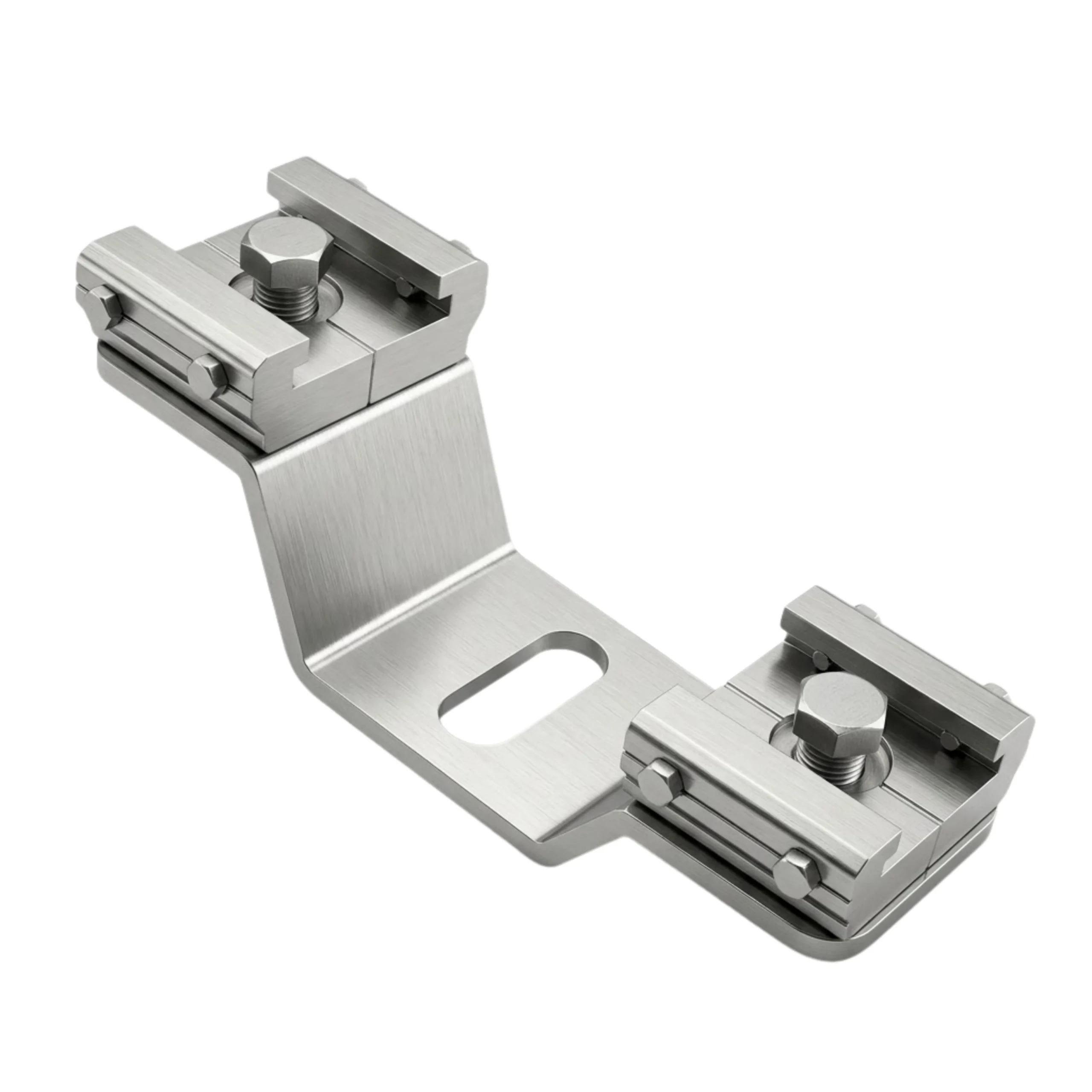

The Groxx GRXRLS15 is a high-strength, load-bearing intermediate bracket designed for the HVB Rail Lifeline System (Horizontal, Vertical, and Bevel). It serves as a critical structural interface, facilitating track positioning and providing the necessary load transfer from the rigid rail to the concrete substrate or primary structure.
Advanced Load Transfer: Engineered to transfer dynamic fall arrest forces directly to the concrete substrate while maintaining strict deflection control and stability restraint for the rail.
Dual-Point Clamping: Features a specialized dual-point clamping mechanism that ensures maximum rail stability and prevents rotation or shifting under high-velocity transit.
Stability & Precision: Designed to strictly control the spacing and precision of the rail installation, which is vital for the smooth passage of traveler shuttles across multi-span layouts.
Adjustable Installation: The bracket architecture allows for fine-tuned adjustments during mounting, ensuring the rail remains perfectly aligned regardless of minor substrate irregularities.
| Feature | Specification |
| Model Number | GRXRLS15 (Ref: AD2511290001) |
| Material Composition | Stainless Steel Bracket (304) with Aluminum Alloy Base (AL) |
| Safe Load Capacity | 12 kN |
| Safety Factor | 1.5 |
| Unit Weight | 837 g |
| Width (B) | 70 mm |
| Height (H) | 58.4 mm |
| Length (L) | 190 mm |
Hybrid Material Engineering: Combines the high tensile strength of 304 Stainless Steel for the structural bracket with a lightweight, corrosion-resistant Aluminum Alloy base.
Anti-Loosening Design: Features reinforced anti-loosening hardware to maintain structural torque and reliability over long-term exposure to vibration and environmental stress.
Substrate Compatibility: For concrete slab applications, the GRXRLS15 is typically secured using the GRX851 Chemical Anchor system to ensure a high-strength molecular bond.
The GRXRLS15 is rigorously tested to meet global rigid rail safety benchmarks:
EN 795:2012 Type D: Certified as an anchor component for rigid anchor lines (Rated for 1 user).
CEN/TS 16415:2013: Compliant for multi-user safety applications, supporting up to 3 users simultaneously.
Validity Period: Rated for a 10-year service life, supported by mandatory annual professional inspections.
The GRXRLS15 provides the heavy-duty structural support required for complex HVB rail systems. Its unique dual-point clamping and adjustable installation features allow maintenance teams to create a highly stable, precise, and reliable fall protection path on even the most challenging architectural facades.
