Groxx Interanchor & Corner Brackets | GGLCB053 & GGACB054

Heavy-Duty Heavy-Task Lifeline Intermediate Support Matrix

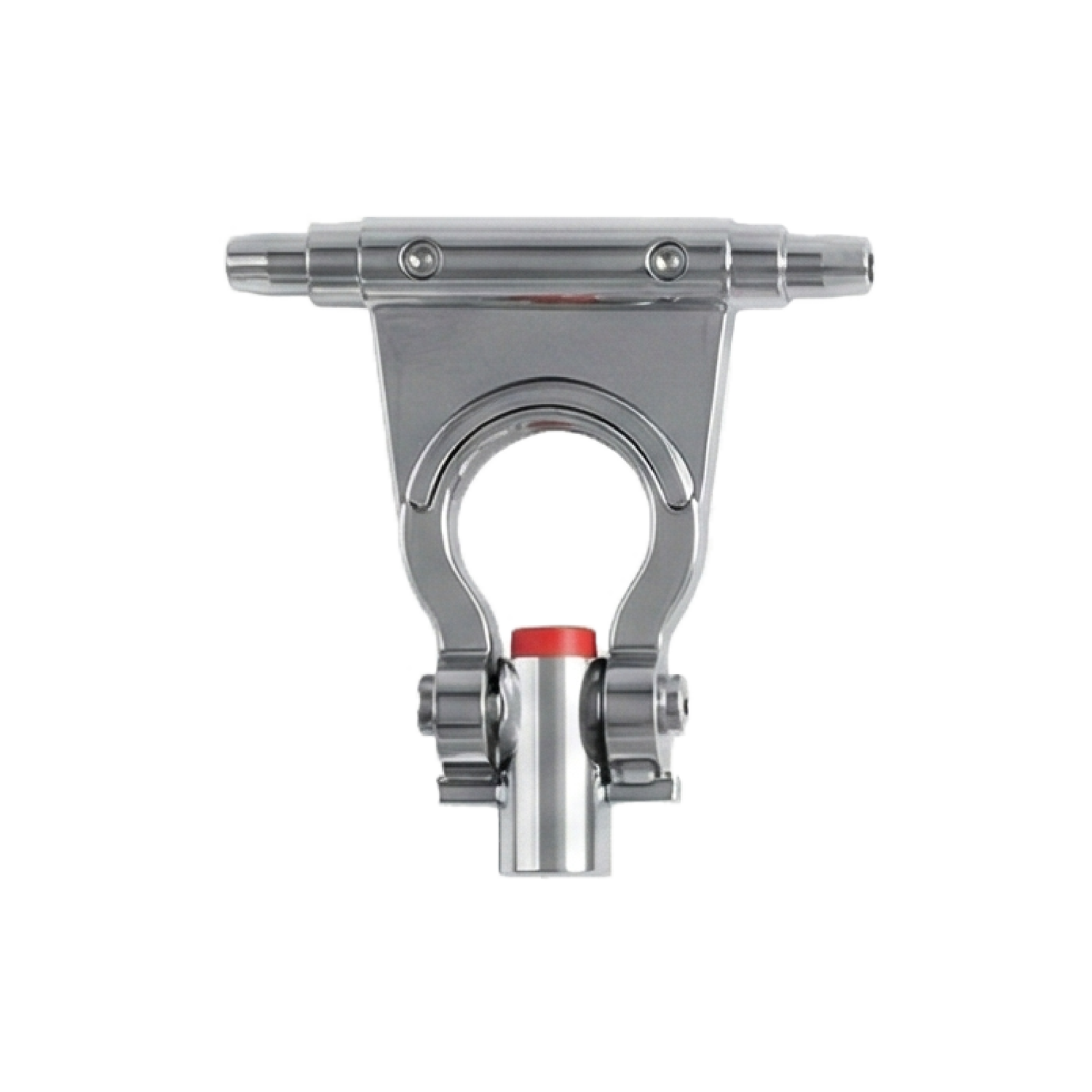

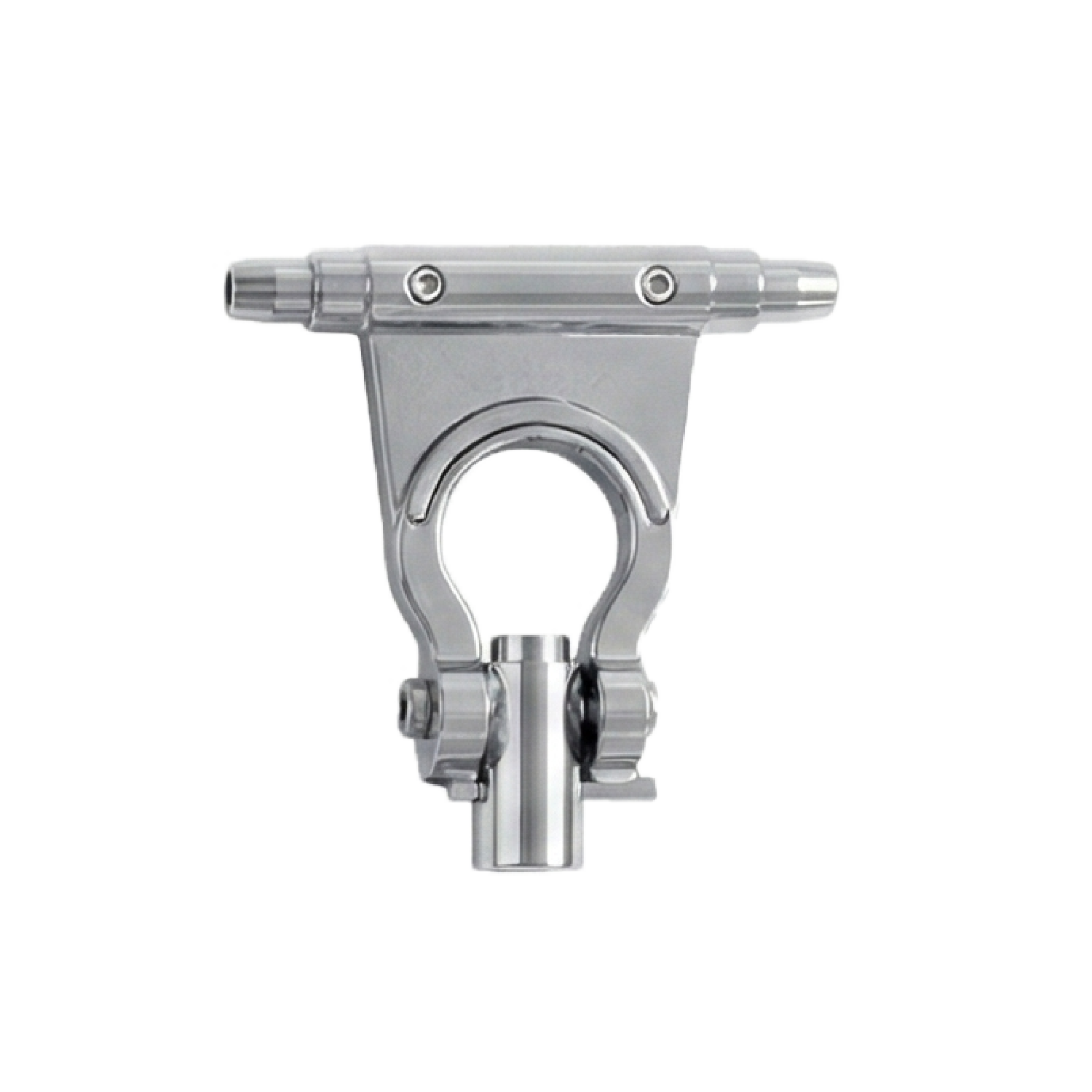

The Groxx GGLCB053 (Linear Interanchor) and GGACB054 (Corner) are high-capacity, multi-purpose intermediate structural hardware assemblies engineered for permanent, flexible horizontal cable lifeline systems. Designed to guide and anchor heavy-task safety lines along complex multi-span industrial setups, these structural ring brackets act as a dependable, highly rigid track backbone to ensure maximum personnel stability across continuous elevated work paths.

Core Performance Features

  • Advanced Multi-Angle Kinematics: Equipped with an adjustable orientation/articulation mount. This allows the lifeline path to adapt to structural contours, elevation changes, and wall transitions without twisting or stressing the cable matrix.

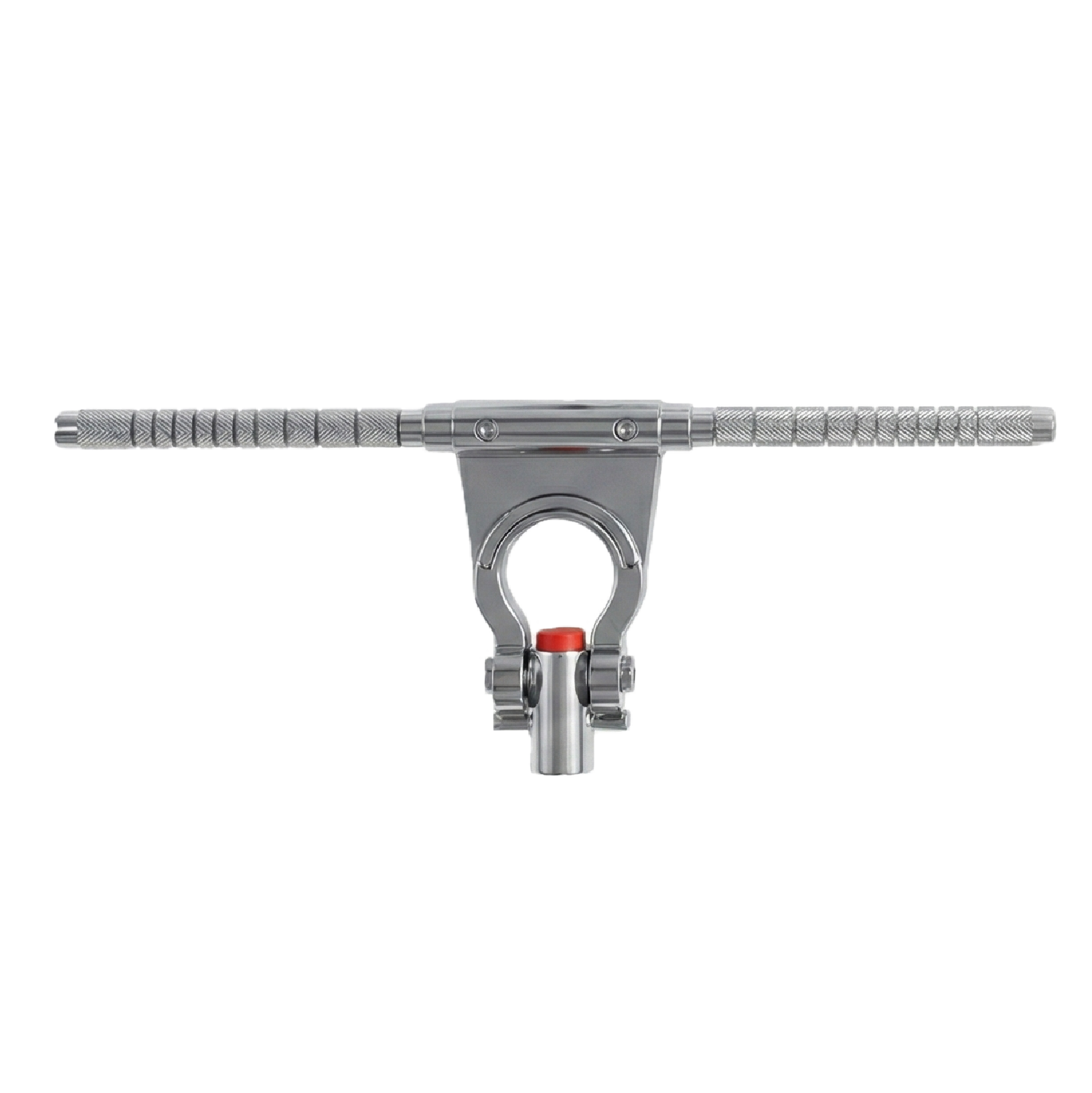

  • Integrated Strand Armor & Repair Function: Must be paired with rigid internal steel pipe inserts (straight or curved formats) to shield the wire rope from localized friction. If localized cable wear or broken strands occur, the bracket’s adjustable support sleeve can be moved and re-tightened directly over the damaged area—reinforcing the cable strand and deferring costly line replacements.
  • Auxiliary Independent Anchorage Rating: Engineered with massive structural reserve capacities. In a standard horizontal lifeline setup, the central middle bracket section can double as a temporary, independent fall arrest anchorage point for workers altering rigging or safety setups.
  • Weld-Free Safety Profiling: Precision machined from solid material stocks to ensure zero load concentration zones, eliminating the hidden stress fractures and micro-tears typical of poorly welded field brackets.

Technical Specifications

Structural Parameter Linear Variant (GGLCB053) Corner Variant (GGACB054)
Model Number GGLCB053 GGACB054
Product Classification Type C Intermediate Guide Type C Multi-Angle Corner Guide
Standard EN 795:2012 Type C (horizontal flexible line) + CEN/TS 16415
EN requirementStatic test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415)
Material Composition Stainless Steel 304 / 316 Stainless Steel 304 / 316
Cable Diameter Range Ø8mm / 10mm / 12mm Ø8mm / 10mm / 12mm
Envelope Dimension (L × W × H) 86 × 104.2 × 14.2 mm 86 × 104.2 × 14.2 mm
Rated Ultimate Load 23 kN 23 kN
Fulfillment Capacity 2 Operators Simultaneously 2 Operators Simultaneously
Unit Weight 376 g 450 g

Lifespan & Environmental Performance

Forged entirely from premium stainless steel grades, these brackets are rated for extended exposure in industrial, chemical, and offshore environments:

  • Grade 304 Stainless Steel: Rated for a 10-year conditional validity period, ideal for standard commercial flat roofs and indoor production lines.
  • Grade 316 Stainless Steel: Rated for an extended 20-year conditional validity period, optimized for marine docks, chemical processing plants, and severe industrial environments.

Mandatory Maintenance: To keep compliance status valid, all components must undergo a professional structural safety inspection at least once every twelve (12) months to evaluate bolt pre-tension torque and line clearance profiles.

Compliance & International Standards

The GGLCB053 and GGACB054 assemblies are certified to pass the most rigorous safety requirements for continuous horizontal lifeline tracking hardware:

  • EN 795:2012 Type C: Certified under European requirements as a permanent structural anchor device fixed to a flexible line.
  • CEN/TS 16415:2013 Type C: Fully validated for multi-user safety setups, ensuring complete force containment and structural stability during concurrent multi-operator fall arrest events.

The Groxx Advantage

The GGLCB053 & GGACB054 Series represents an engineering leap beyond basic single-gauge wire clips. Delivering an exceptional 23 kN ultimate load rating and supporting up to 12 mm heavy-gauge cables, this matrix handles the intense dynamic stresses generated in high-risk heavy industrial applications. By using a unique sleeve-repositioning setup, it protects expensive wire ropes at their highest-wear tension points, lowering overall operational and maintenance costs while giving technicians a smooth, continuous travel path.
