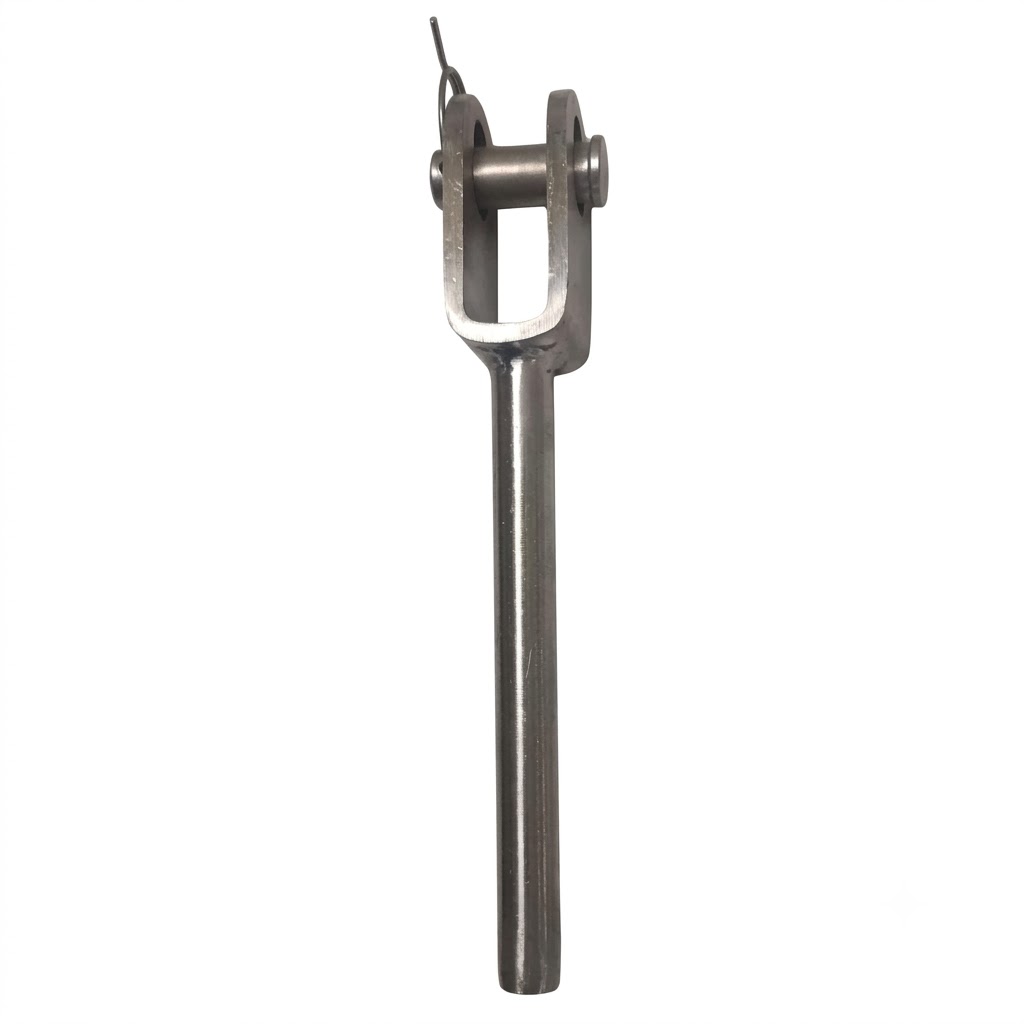

The Groxx Swaged Terminal End (Model Number: GGTE003) is a premium, high-strength cable extremity component designed for permanent, flexible horizontal wire rope lifeline installations. Functioning as a secure terminal anchor point, this device attaches directly to the end of a primary lifeline cable, providing a clean and incredibly robust swaged connection that ensures structural system integrity across industrial work heights.
Secure Swaged Termination: Designed to anchor directly onto the end of an 8 millimeter diameter wire rope using a compressed swaging process. This mechanical crimping method ensures a neat end connection that completely eliminates frayed or loose wire strands.
Straightforward Length Calibration: Highly adaptable and simple to install at any desired point along the run of the cable, making it easy for field technicians to achieve exact architectural spans during custom on-site installations.
Marine-Grade Metallurgy: Fabricated completely from high-tensile, marine-grade 316 Stainless Steel with a highly polished finish. This premium composition delivers exceptional long-term resistance to galvanic corrosion, oxidation, and aggressive environmental weathering.
Massive Structural Safety Margin: Engineered with a heavy-duty physical profile that provides a high minimum breaking strength of 25 kilonewtons to withstand intense dynamic vector forces during fall arrest events.
| Feature / Structural Attribute | Specification / Engineering Target Value |
| Model Number | GGTE003 |
| Product Classification | Swaged Cable Termination End |
| Material Base Composition | Grade 316 Stainless Steel (Body, Bolt, and Pin) |
| Exterior Protection / Finish | Highly Polished |
| Lifeline Cable Compatibility | 8 millimeter diameter wire ropes |
| Minimum Breaking Strength (MBS) | 25 kilonewtons |
| Total Component Net Weight | 0.500 kilograms plus or minus 0.020 kilograms |
| Primary Safety Standards | EN 795:2012 Type C and CEN/TS 16415:2013 |
The GGTE003 terminal component is rigorously tested and verified to comply with primary international engineering and industrial personal fall protection regulations:
EN 795:2012 Type C: Fully certified under European benchmarks as a compliant permanent structural anchor component operating within flexible horizontal lifeline configurations.
CEN/TS 16415:2013: Thoroughly validated under multi-user technical specifications, ensuring the swaged architecture safely contains simultaneous load forces generated during a multi-operator fall event.
Elimination of Loose Wire Strands: Standard field-cut wire ropes present severe cut hazards and unraveling risks over time. The swaged crimping matrix compresses the 316 stainless steel body directly around the 8 millimeter steel wire rope core, turning it into a neat, fused, and tamper-proof structural end terminal.
Heavy-Duty Component Matching: Featuring an integrated heavy-duty matching bolt and pin assembly machined from polished 316 Stainless Steel, this component seamlessly interfaces with standard tensioners, energy absorbers, and massive terminal wall brackets without introducing mechanical weak points.
Long-Term Multi-User Safety Assurance: With a certified 25 kilonewton minimum breaking strength, safety engineers can reliably deploy this terminal end across wide commercial rooftops, maritime crane tracks, and bridge walkways, providing multi-operator fall protection that stands up to severe industrial environments.
