Single Point Anchor

Anchor Point

Single Point Anchor

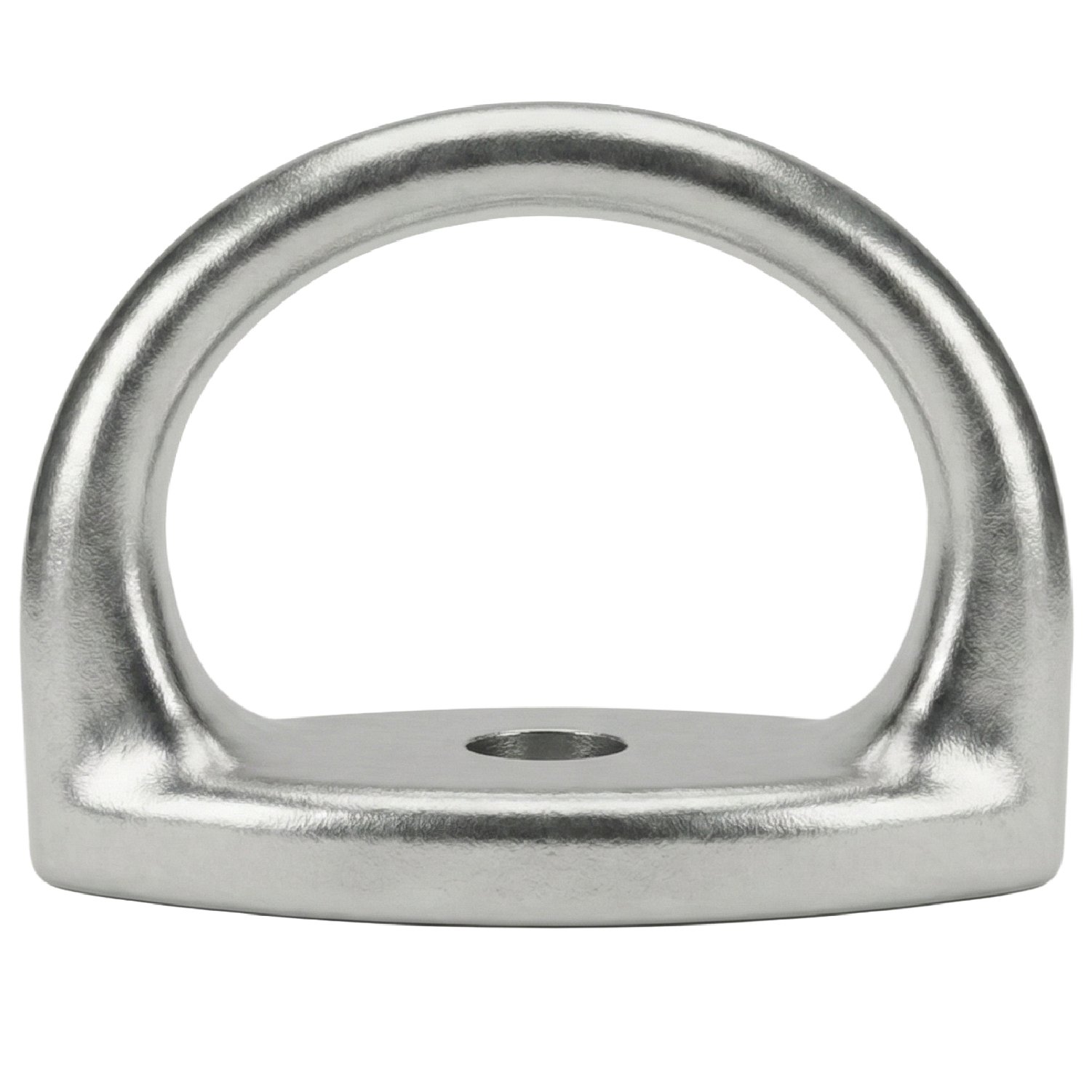

SINGLE POINT ANCHOR – SKU: GGSPA040 Single Point Anchor is a forged 316 stainless steel anchorage point designed for reliable fall protection. Suitable for rooftops and steel structures, it is also ideal for abseiling applications. The anchor can withstand load impact in all three axes (X, Y, and Z)…

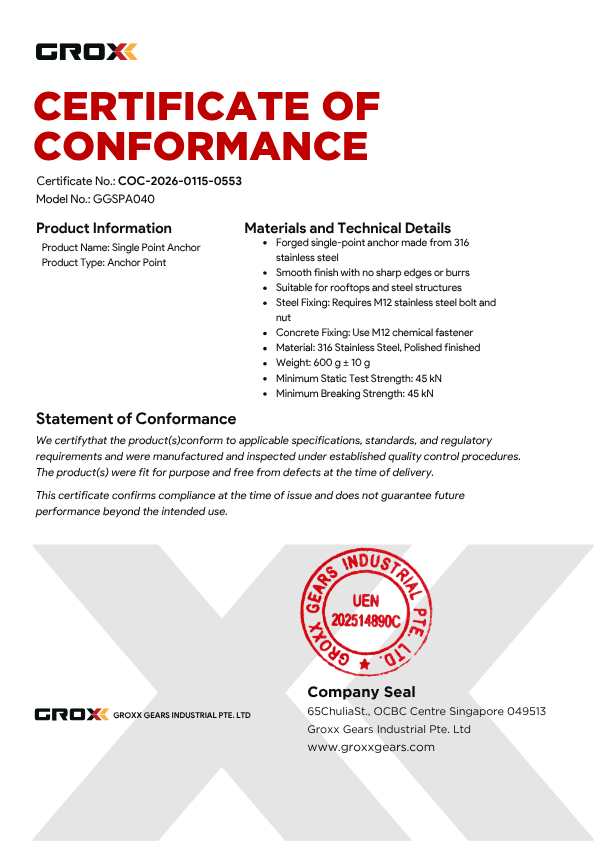

StandardDesigned to EN 795:2012 Type A + CEN/TS 16415 — certificate on request
SKUGGSPA040
CategoryAnchor Point
Tagsanchor point

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

StandardDesigned to EN 795:2012 Type A + CEN/TS 16415 — certificate on request
EN requirementStatic test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415)

SINGLE POINT ANCHOR – SKU: GGSPA040

Single Point Anchor is a forged 316 stainless steel anchorage point designed for
reliable fall protection. Suitable for rooftops and steel structures, it is also ideal
for abseiling applications. The anchor can withstand load impact in all three axes
(X, Y, and Z), making it highly versatile, and extremely durable.

FEATURES

• Forged single-point anchor made from 316 stainless steel
• Suitable for abseiling and fall protection applications
• Designed to sustain load impact in X, Y, and Z directions
• Smooth finish with no sharp edges or burrs
• Suitable for rooftops and steel structures

INSTALLATION

• Steel Fixing: Requires M12 stainless steel bolt and nut
• Concrete Fixing: Use M12 chemical fastener

MATERIAL

• Material: 316 Stainless Steel
• Finish: Polished

WEIGHT

• 600 g ± 10 g

STRENGTH

• Minimum Breaking Strength: 23 kN
• Minimum Static Test Strength: 45 kN
• Minimum Breaking Strength: 45 kN
