SKU GRXRPU800 Spare Parts

Rope Pressing Unit

Rope Pressing Unit

Product description

Groxx Traction Hoist Accessories | GRXRPU800 Rope Press Unit

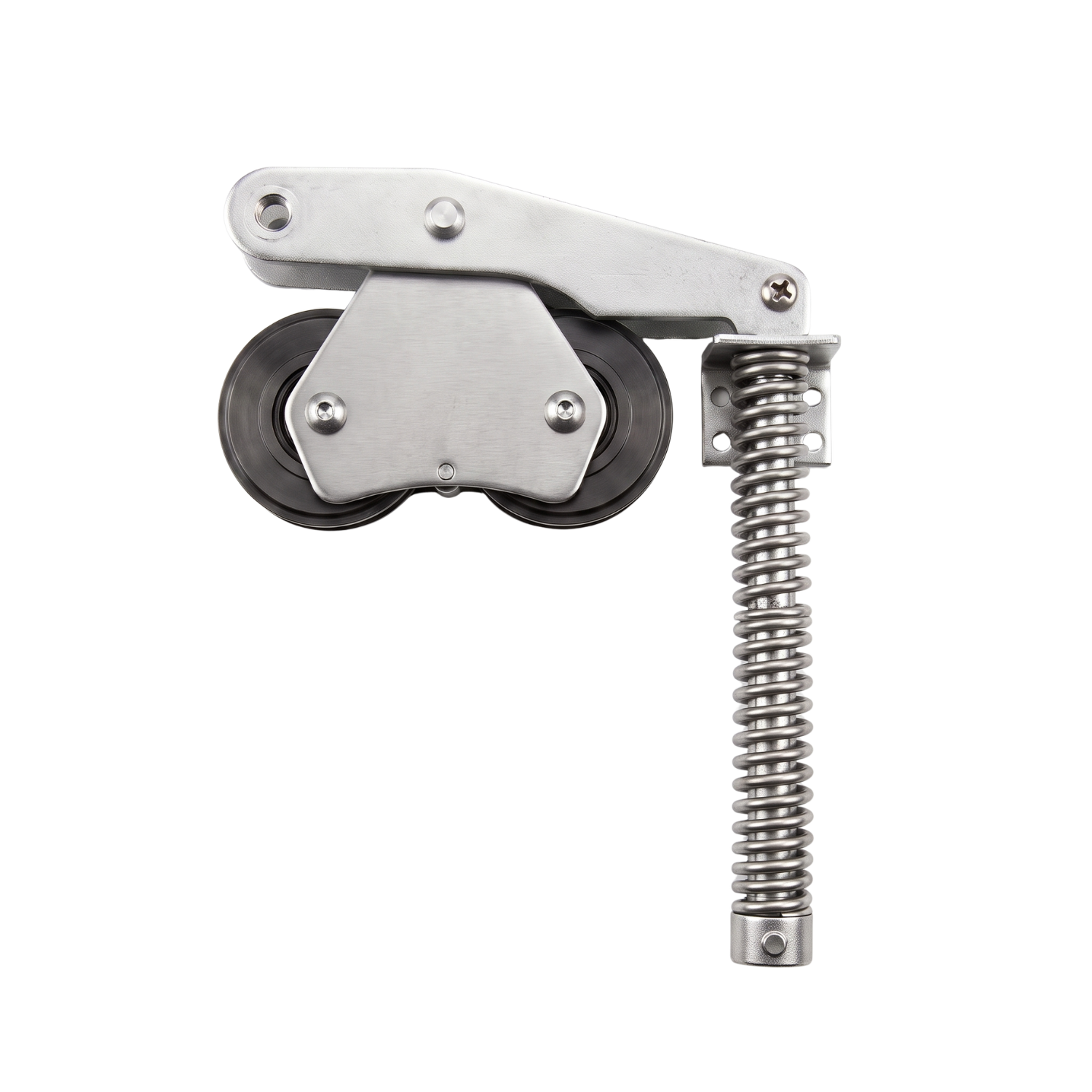

The Groxx GRXRPU800 is a heavy-duty, high-precision rope press unit specifically engineered for 800 kg capacity traction hoists used in suspended access platforms, swing stages, and material lifting systems. Designed to maintain continuous mechanical engagement between the wire rope and the drive sheave, the GRXRPU800 prevents cable slippage, rope deformation, and operational jams under demanding industrial loads.
Primary Functions
  • Positive Traction Management: Applies precise, continuous radial force to lock the wire rope into the drive sheave grooves, guaranteeing reliable lifting capacity up to its 800 kg rating.
  • Controlled Cable Transit: Guides the wire rope smoothly through the drive zone, eliminating twisting, bird-caging, and uneven wear during high-frequency ascent and descent cycles.
  • Slack-Rope Protection: Keeps the cable firmly seated in the traction sheave during zero-load conditions or sudden loss of line tension, preventing internal jams.
  • Emergency Response Engagement: Maintains the required baseline tension for secondary overspeed and safety locks to trigger instantly if an emergency overspeed event occurs.
Technical Specifications
Feature Specification
Model Number GRXRPU800
Rated Hoist Capacity 800 kg
Compatible Rope Diameter 8.3 mm to 9.5 mm Traction Wire Rope
Pressure Mechanism Self-Adjusting Heavy-Duty Compression Springs
Roller Material Hardened Chrome-Alloy Steel
Housing Material AISI 316 Stainless Steel & Galvanized Steel
Weight 3.2 kg
Key Technical Features
  • Self-Adjusting Spring Calibration: Equipped with high-fatigue compression springs that automatically adjust pressure to compensate for minor wire rope diameter variations and natural surface wear over time.
  • Hardened Alloy Rollers: Precision-machined, wear-resistant steel rollers reduce friction against the wire rope while maintaining maximum radial clamping force.
  • Quick-Release Maintenance Access: Designed with an intuitive tension release latch for fast daily safety checks, rapid re-reeving, and effortless rope replacement.
  • Debris & Corrosion Protection: Enclosed in a heavy-duty, electro-polished housing that resists cement dust, grime, and severe weather exposure on active jobsites.
The Groxx Advantage
The GRXRPU800 Rope Press Unit eliminates traction slip and cable deformation—the primary drivers of suspended platform downtime. By combining self-adjusting tension control with hardened alloy components, Groxx ensures smooth, reliable vertical travel while maximizing the operational lifespan of both the traction hoist and the wire rope.

Downloads and manuals

PDF Data Sheet
