Anchor Point
Rolling Beam Anchor
ROLLING BEAM ANCHOR – SKU: GGRBA037 The Rolling Beam Anchor attaches to structural steel beams to create a movable rolling anchorage point for fall arrest systems. It adjusts to fit various beam widths and allows the user to move safely along the length of the beam. FEATURES • Provides a movable anc…
Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.
Specifications
| Standard | Designed to EN 795:2012 Type B (transportable) + CEN/TS 16415 — certificate on request |
| EN requirement | Static test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415) |

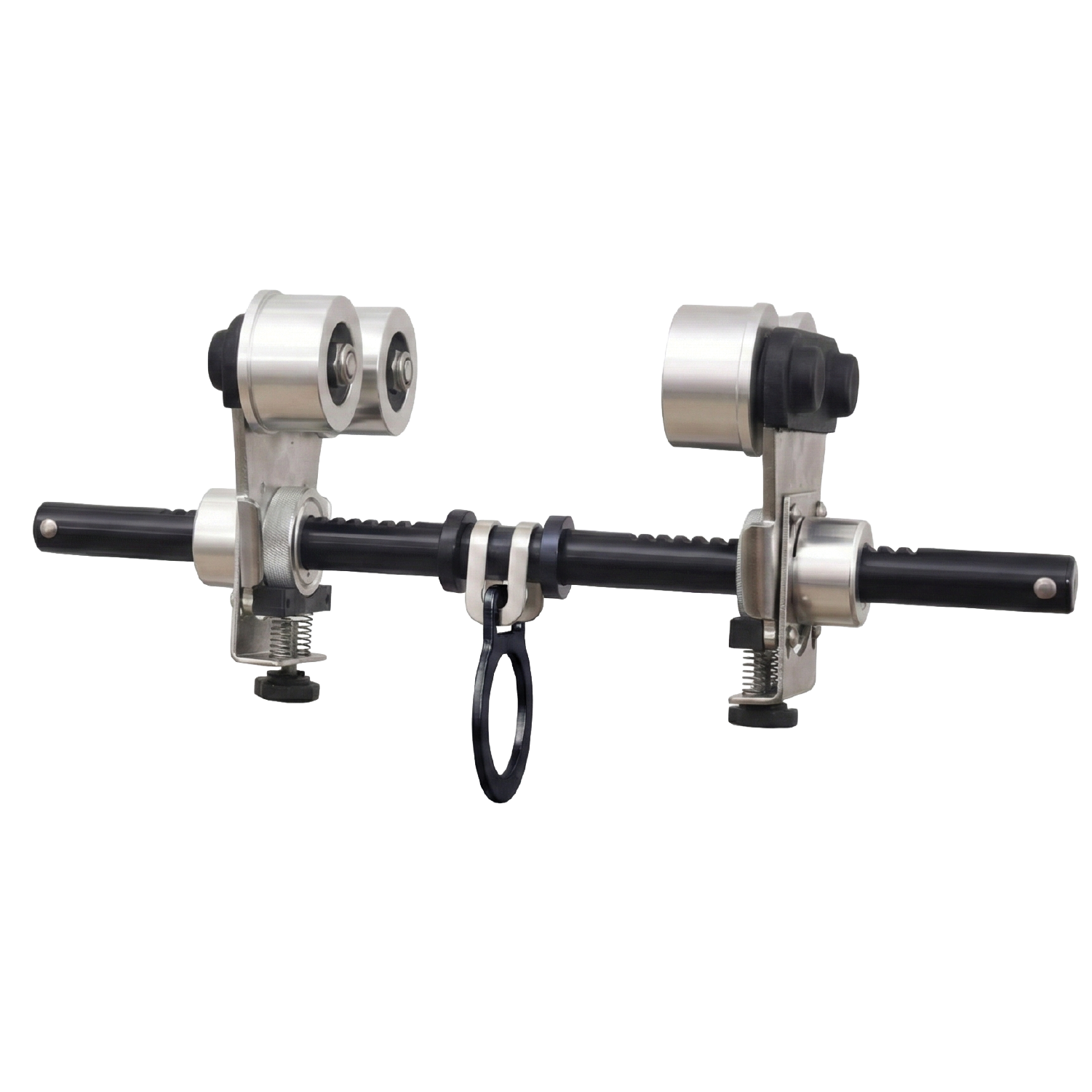

ROLLING BEAM ANCHOR – SKU: GGRBA037
The Rolling Beam Anchor attaches to structural steel beams to create a movable rolling
anchorage point for fall arrest systems. It adjusts to fit various beam widths and allows
the user to move safely along the length of the beam.
FEATURES
• Provides a movable anchorage point that travels along the beam with the user
• Ensures continuous fall protection across the beam length
• Adjustable flanges to fit different beam sizes
• Smooth-rolling wheels for easy and stable movement
• Highly corrosion-resistant and easy to install
• Suitable for flange widths from 80 mm to 250 mm
MATERIAL
• Aluminum Alloy & Stainless Steel
• Anodized finish
WEIGHT & HEIGHT
• 3.90 kg ± 0.01 kg
STRENGTH
• Minimum Breaking Strength: 23 kN
