Purlin Anchor

Anchor Point

Purlin Anchor

Groxx Purlin Anchor | GGRXPA789 Roof Purlin Anchor Bolt for Corrugated Roof Profile (Small) The Groxx Purlin Anchor (Model Number: GGRXPA789) is a premium, industrial-grade personal fall protection component engineered to attach directly to structural roof purlins through corrugated sheet profiles. …

StandardEN 795:2012 Type A + CEN/TS 16415
SKUGGRXPA789
CategoryAnchor Point
Tagspurlin anchor

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

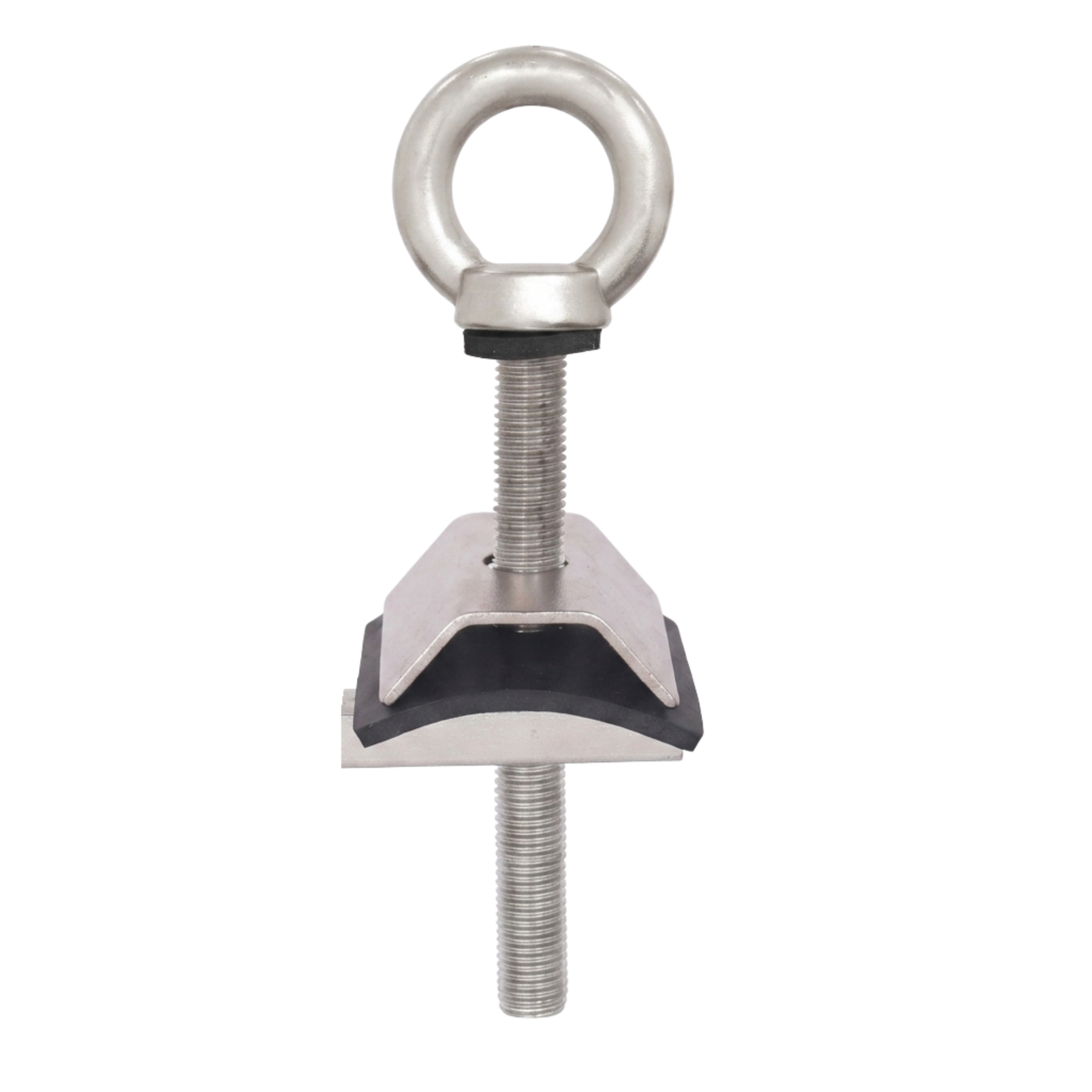

Groxx Purlin Anchor | GGRXPA789

Roof Purlin Anchor Bolt for Corrugated Roof Profile (Small)

The Groxx Purlin Anchor (Model Number: GGRXPA789) is a premium, industrial-grade personal fall protection component engineered to attach directly to structural roof purlins through corrugated sheet profiles. Serving as a permanent single-point anchorage connector, this high-tensile hardware provides dependable fall-arrest security for technicians executing high-altitude roof maintenance, inspections, and industrial staging tasks.

Core Performance Features

  • Direct Structural Purlin Anchoring: Engineered as a dedicated single-point anchor designed to be fixed directly into the building’s underlying roof purlins through corrugated sheet crowns to create a permanent, heavy-duty anchorage zone.
  • Vital Fall Protection Interface: Specifically optimized to serve as a reliable tie-off point for personal fall arrest systems (PFAS), shock-absorbing lanyards, and vertical lifelines.
  • Watertight Joint Sealing: Outfitted with an integrated rubber washer system to ensure correct mechanical installation and render the penetrated corrugated roof joint fully leak-proof against rainwater entry.
  • Multi-Directional Strength Capacity: Built with structural reserve limits that deliver a minimum breaking strength of 15 kilonewtons across both the horizontal and vertical load vectors (X and Y axis direction paths).

Technical Specifications

Feature / Core Engineering Parameter Specification / Technical Target Value
Model Number GGRXPA789
Product Classification Roof Purlin Anchor Bolt / Corrugated Profile (Small)
Standard EN 795:2012 Type A + CEN/TS 16415
EN requirementStatic test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415)
Metal Hardware Base Grade 316 Stainless Steel with a highly polished finish
Sealing Washer Compound High-Resilience Neoprene Rubber
Installation Hole Requirement 30 millimeter diameter clearance hole required
Minimum Breaking Strength (MBS) 15 kilonewtons in both X and Y directional axes
Total Component Net Weight 840 grams plus or minus 20 grams
Fulfillment Capacity Limit Rated suitable for 1 user maximum
Operational Reference Guideline Refer to the User Instruction Manual before deploying hardware

Regulatory Compliance and Standards

The GGRXPA789 structural purlin anchor assembly is thoroughly verified and certified to comply with primary international rigging and height safety engineering criteria:

  • EN 795:2012 TYPE A: Conforms to European standards for permanent single-point anchor devices fixed securely to structural building substrates.
  • AS/NZS 5532:2013: Conforms to Australian and New Zealand manufacturing safety mandates evaluating the performance integrity of single-point anchor devices under dynamic and static testing profiles.

The Groxx Advantage

  • Marine-Grade 316 Longevity: Forged entirely from polished 316 Stainless Steel, the structural eye-bolt and nut assembly offers exceptional protection against pitting and atmospheric degradation. This ensures the anchor point remains structurally sound over years of exposure to harsh rooftop weather and coastal salt air.
  • Neoprene Leak Defenses: The integrated Neoprene Rubber washer acts as a flexible, heavy-duty barrier that compresses flush beneath the metal saddle block. This design dampens building vibrations while sealing the 30 mm installation opening completely against industrial leaks and rust tracking.
  • True Multi-Axis Load Protection: While standard hardware eye-bolts can bend or shear if pulled sideways, the GGRXPA789 is engineered to withstand a massive 15 kN breaking force in both the X and Y coordinates. This ensures complete structural stability regardless of which way a worker moves or falls along the roof line.
