Horizontal Counterweight Anchor

Anchor Point

Groxx Standalone Counterweight Anchor Post

Groxx Standalone Counterweight Anchor Post Portable Non-Penetrating Roof Anchor System The Groxx Standalone Counterweight Anchor Post (Model NO: GGCWA062) is a premium, portable anchorage solution engineered specifically for flat roof environments where penetrating or altering the building structure…

StandardEN 795:2012 Type E (deadweight anchor)
SKUGGCWA062
CategoryAnchor Point
Tagsanchor point, counterweight anchor

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

Groxx Standalone Counterweight Anchor Post

Portable Non-Penetrating Roof Anchor System

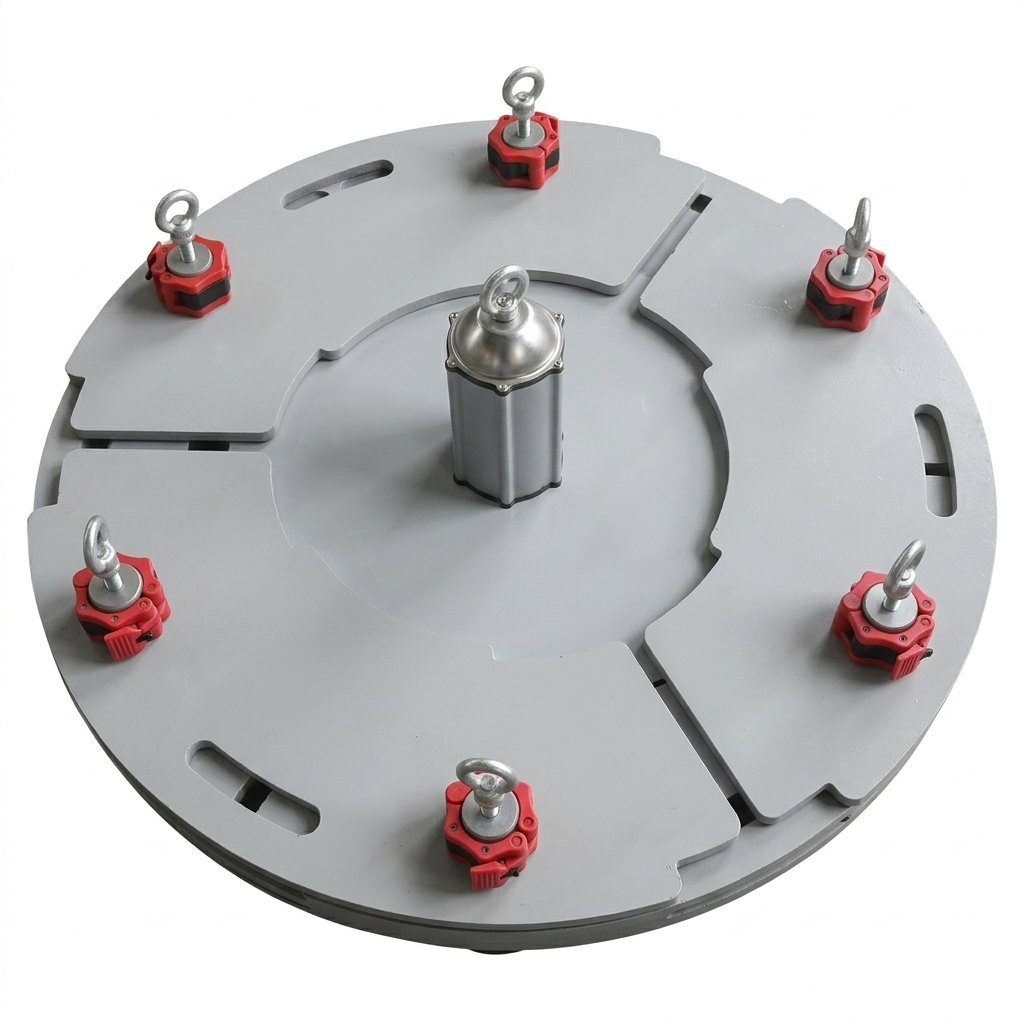

The Groxx Standalone Counterweight Anchor Post (Model NO: GGCWA062) is a premium, portable anchorage solution engineered specifically for flat roof environments where penetrating or altering the building structure is restricted or impossible. Utilizing a high-stability modular weight configuration, the system establishes a secure tie-off point for maintenance, facade access, and height-safety operations without compromising roof membrane integrity.

Core Applications & Performance Features

  • Non-Penetrating Substrate Protection: Employs a friction-backed counterweight distribution matrix that sits completely freestanding on top of the roof structure.
  • Integrated Kinetic Shock Absorption: Features an internal shock-absorbing core post designed to actively deploy and absorb dynamic forces during a fall event, minimizing peak impact loads transferred to both the worker and the supporting roof structure.
  • High-Adhesion Rubber Base Mats: Supplied with protective rubber base plates that cushion the roof surface while providing enhanced anti-slip grip against the structural plane.
  • Flat and Low-Pitch Versatility: Explicitly optimized for installation on flat roofs and level surfaces featuring a maximum allowed slope of up to 5∘.
  • Multi-Role Industry Execution: Approved for single-user operations across personal fall arrest setups, building facade maintenance, travel restraint, and industrial abseiling (rope access) configurations.

Technical Specifications

Feature Specification / Value
Model Number GGCWA062
Product Category Freestanding Counterweight Anchor
Standard EN 795:2012 Type E (deadweight anchor)
EN requirementStatic test 12 kN (18 kN if any load-bearing part is non-metallic), +1 kN per additional user (CEN/TS 16415); for surfaces up to 5° slope
Structural Metallurgy High-strength alloy steel core components
Surface Treatment Powder-coated for superior outdoor corrosion resistance
System Strength Capacity 15 kN minimum breaking strength
Operational Capacity Optimized for single-user operation (1 person)
Deployment Envelope Flat surfaces with a maximum incline of 5∘

Weight & Modular Breakdown

The system is designed for quick and straightforward assembly, allowing individual modular components to be manually transported to rooftops and built up rapidly without specialized machinery:

  • Total System Mass: 316.5 kg±0.10 kg
  • Steel Counterweight Plates: 25 kg each
  • Rubber Protective Base Plates: 25 kg each

Compliance & International Standards

The GGCWA062 assembly is fully tested, certified, and compliant with European and global safety parameters for freestanding anchor devices:

  • EN 795:2012 Type E: Certified under European criteria regulating mobile anchor devices relying on mass and friction between the system and the surface.
  • TS 16415:2013 Type E: Fully validated under multi-risk verification standards to guarantee structural load containment for mobile fall safety devices.

The Groxx Advantage

The GGCWA062 Standalone Counterweight Anchor Post provides temporary or permanent height security where traditional anchoring methods fail. By matching a rugged 15 kN system strength with an advanced energy-damping post, it eliminates the risk of expensive leaks or structural damage caused by drilling into roofing membranes. Its modular layout allows a single technician to transport, position, and commission a complete fall arrest anchor zone quickly, creating a fluid, high-safety workspace for short-duration facade access or general plant maintenance.
