Roof Screw

Fasteners

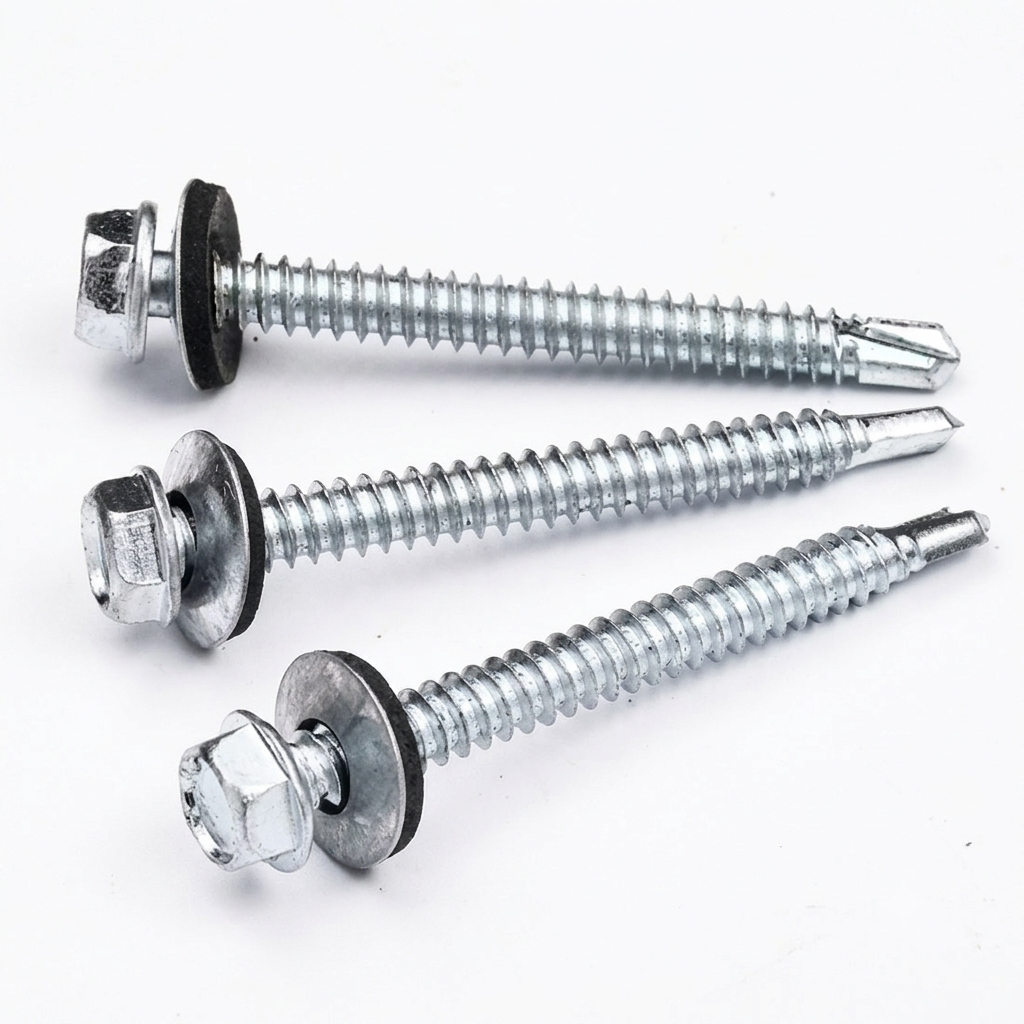

Groxx Zinc-Coated Hex Self-Drilling Roofing Screw

Groxx Zinc-Coated Hex Self-Drilling Roofing Screw | GGRXRFS4875 Heavy-Duty Structural Roofing & Cladding Fastener The Groxx Zinc-Coated Hex Self-Drilling Roofing Screw (Model Number: GGRXRFS4875) is a premium, contractor-grade structural fastener designed for securing metal roofing profiles, sid…

SKUGGRXRFS4875
CategoryFasteners
Tagsroof screws, tek screw

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

Groxx Zinc-Coated Hex Self-Drilling Roofing Screw | GGRXRFS4875

Heavy-Duty Structural Roofing & Cladding Fastener

The Groxx Zinc-Coated Hex Self-Drilling Roofing Screw (Model Number: GGRXRFS4875) is a premium, contractor-grade structural fastener designed for securing metal roofing profiles, siding, and trapezoidal sheets directly to timber or light-gauge steel purlins. Engineered with a self-drilling point and a high-efficiency sealing system, this screw eliminates the need for pre-drilling while guaranteeing long-term watertight performance and robust wind-load resistance.

Core Performance Features

  • Advanced Self-Drilling Tip: Equipped with an engineered drill point (Type #3/DIN 7504-K style) that cleanly pierces metal sheets and purlins in a single, high-speed operation, eliminating separate pilot hole-drilling stages.
  • Corrosion-Resistant Zinc Shielding: Treated with a high-purity electro-galvanized zinc coating. This sacrificial barrier delivers excellent resistance against red rust, moisture tracking, and chemical weathering.
  • Watertight EPDM Bonding Washer: Pre-assembled with an aluminum-backed EPDM (Ethylene Propylene Diene Monomer) rubber washer. The washer compresses evenly upon driving to form an absolute weather-tight seal against heavy rain, atmospheric moisture, and thermal expansion cycles.
  • Hex-Washer Drive Stability: Features an integrated hexagonal washer head to ensure slip-free driving torque and broad load-bearing distribution across the fastened sheet profile.

Technical Specifications

Feature / Dimensional Parameter Engineering Value / Standard
Model Number GGRXRFS4875
Screw Type Hex Washer Head Self-Drilling Roofing Screw
Nominal Outer Diameter (D) 4.8 millimeters
Total Length (L) 75.0 millimeters
Material Base Hardened Carbon Steel (Grade SAE J403 1022 or equivalent)
Surface Treatment / Coating Electro-Plated Zinc Coating (Bright Zinc-Plated)
Drive Interface 8.0 mm Hex Head (s = 8 mm Spanner size)
Head Thickness (k) Approximately 4.3 mm
Flange Head Diameter (dk) Approximately 10.0 mm
Washer Assembly Pre-fitted EPDM / Aluminum Backed Sealing Washer
Recommended Driving Speed 1,500 RPM to 2,500 RPM

Load-Bearing Performance Limits

Tested under rigid industrial fastener guidelines (simulating vertical shear and axial tensile strain over structural sheet profiles):

  • Ultimate Tensile Resistance: 7.11 kilonewtons (7.11 kN / approx. 725 kg of pull-apart resistance)
  • Ultimate Shear Resistance: 3.56 kilonewtons (3.56 kN / approx. 363 kg of perpendicular force tolerance)

Key Application Spheres

  • Metal to Timber / Steel Framing: Securing corrugated roofing sheets and cladding panels down to timber battens or thin metal purlins up to 2.5 mm thickness.
  • Overlapping / Stitching Profiles: High-strength stitching of overlapping steel sheets along structural roof ridges and side seams.
  • Industrial Warehousing: Erecting rain screens, cold-storage walls, and prefabricated agricultural sheds.

The Groxx Advantage

  • Eliminates On-Site Pre-Drilling: Combining the drilling, thread-tapping, and tightening phases into one fluid step cuts installation times by up to 50% compared to traditional fastener methods.
  • Zero Leakage Sealing Technology: The premium EPDM composite washer will not dry-rot, crack, or squeeze out of shape under high driving torque, keeping the fastening point completely waterproof for years to come.
  • Flawless Torque Engagement: The deep, precision-formed 8 mm hexagonal socket head prevents the driving bit from slipping or spinning out, saving your panel finish from scratches and keeping installation fast and safe.
