Swageless Cable Extremity

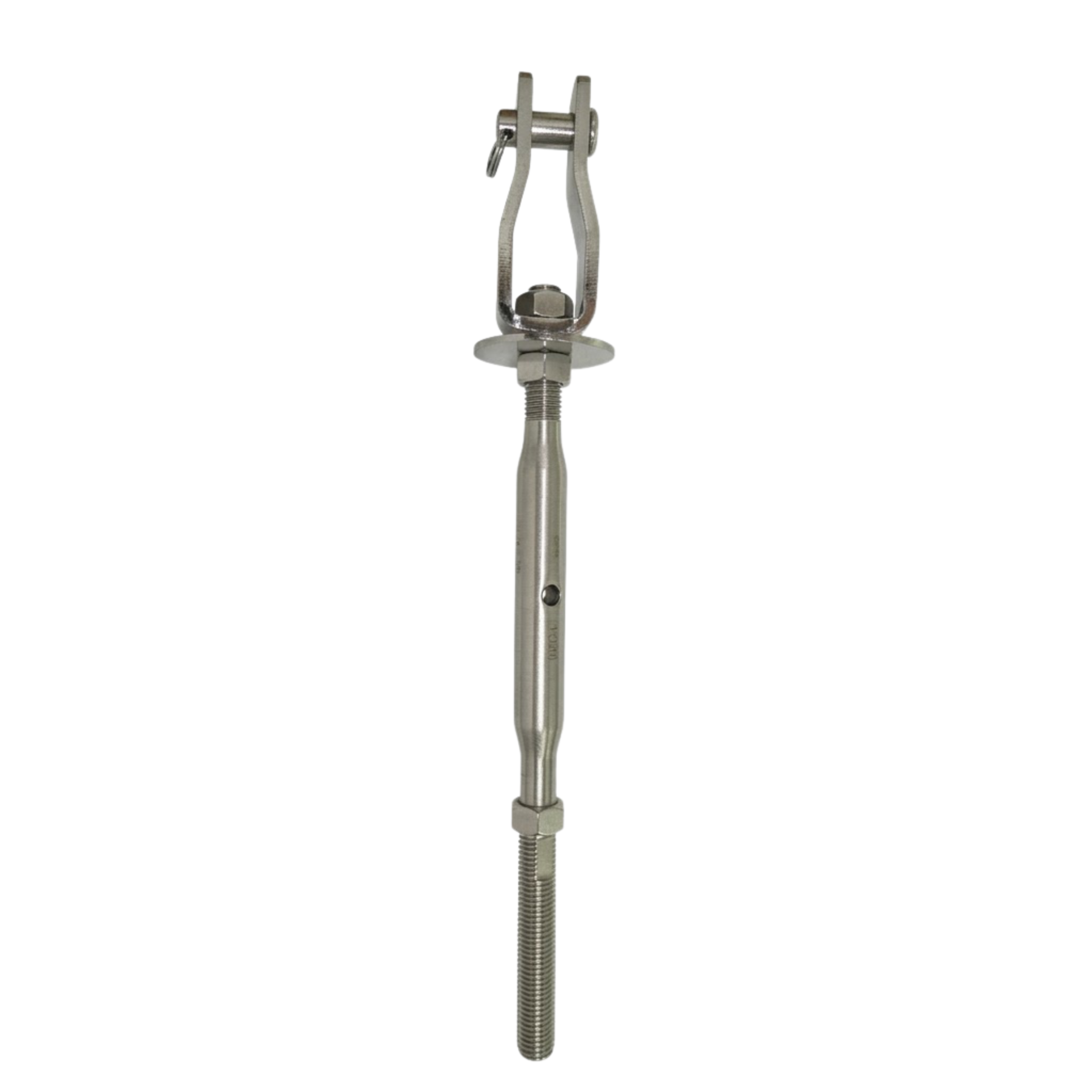

The Groxx Swaged Tensioner (Model NO: GGJT002) is a premium, high-strength industrial cable termination and tension management device designed for permanent, flexible horizontal wire rope lifeline installations. Functioning as a critical structural inline connector, this electro-polished component serves as the vital link bridging the system’s flexible cable directly to its force-damping energy absorber. The GGJT002 provides a highly tactile, visual verification of optimal system tension while ensuring a perfectly taut lifeline profile across extended spans.
Dynamic Tension Force Indicator: Features an integrated, free-spinning tension indicator plate. Once the system reaches its engineered torque and adequate pre-tension has been applied across the lifeline, the plate begins to rotate, giving installers immediate visual confirmation that the system is properly calibrated.
Taut Lifeline Optimization: Serves as a continuous adjustment module, enabling precise, fine-tuned length calibrations to take up slack and maintain a taut, non-sagging horizontal lifeline path.
Vibration-Proof Structural Sealing: Equipped with a dedicated cable sealing lock mechanism that effectively dampens operational shocks and prevents unintentional back-out or de-tensioning caused by constant building vibrations or architectural wind currents.
Optimized Dynamic Adjustment Range: Engineered with a generous stroke travel path, yielding a minimum contracted length of 450.9 mm and a maximum extended length of 546.4 mm for high setup versatility on site.
Premium Swaged Termination: Designed to be hydraulically swaged onto standard $\varnothing$ 8mm 7×19 Stainless Steel wire ropes (optimized to suit AFF4000 series layouts), delivering a permanent, seamless bond with maximum extraction resistance.
| Feature | Specification / Value |
| Model Number | GGJT002 |
| Product Classification | Swaged Cable Tensioner with Force Indicator |
| Material Build | Marine-Grade 316 Stainless Steel |
| Surface Treatment | Electro-Polished |
| Cable Compatibility | 8mm (7×19 Construction) Stainless Steel Wire Rope |
| Minimum Breaking Strength (MBS) | 25 kN |
| Adjustment Envelope | 450.9 mm (Min Contracted) to 546.4 mm (Max Extended) |
| Unit Weight | 1.1 kg |
The GGJT002 is thoroughly engineered and tested to satisfy international regulatory benchmarks for flexible horizontal life safety assemblies:
EN 795:2012 Type C: Fully certified under European safety standards as an integrated, permanent structural component for flexible horizontal anchor lifelines.
System Integration Compatibility: Formally approved to ensure flawless performance and shared load-handling capabilities during personal fall arrest events.
Elimination of Calibration Guesswork: The rotatable tension force indicator plate removes structural ambiguity during handovers. Installers and safety inspectors can visually confirm system readiness without hooking up external, expensive load cell meters.
Marine-Grade Defenses: Forged entirely from electro-polished 316 Stainless Steel, the housing resists chemical pitting, oxidation, and surface staining, keeping internal calibration threads smooth and active even in aggressive coastal or industrial environments.
Massive Structural Safety Margin: Boasting a 25 kN minimum breaking strength, the GGJT002 vastly outpaces standard single-operator load limits, delivering a bulletproof safety architecture that easily handles multi-user dynamic vectors.
