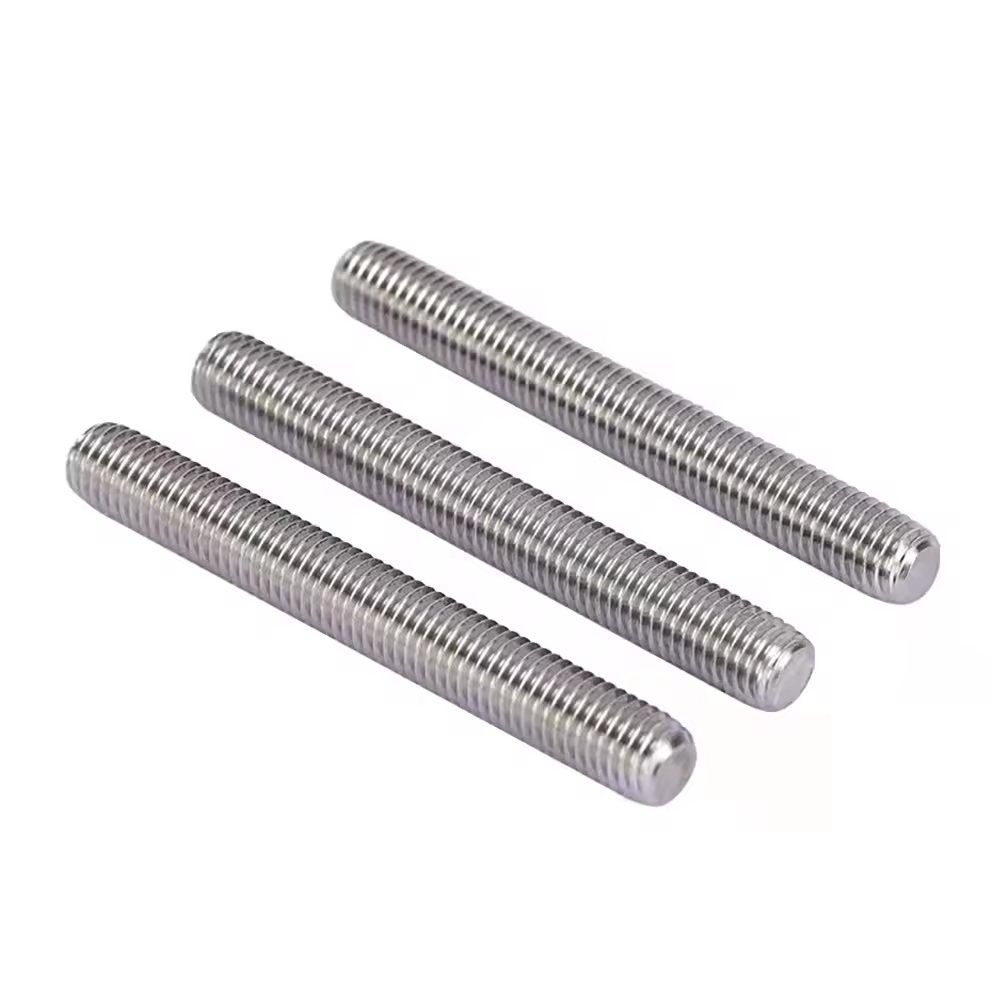

Groxx | SS316 Threaded Rod
Groxx GRXNG143 | Grade 316 Stainless Steel Threaded Hardware The Groxx GRXNG143 Series encompasses our premium range of high-performance threaded bolts, specifically engineered for critical structural connections in fall protection and industrial safety systems. Manufactured from A4-70 (316 Grade) S…
Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.
Specifications
Groxx GRXNG143 | Grade 316 Stainless Steel Threaded Hardware
The Groxx GRXNG143 Series encompasses our premium range of high-performance threaded bolts, specifically engineered for critical structural connections in fall protection and industrial safety systems. Manufactured from A4-70 (316 Grade) Stainless Steel, these fasteners offer the ultimate balance of tensile strength and superior corrosion resistance for the most demanding environments.
Material Properties & Durability
- Grade 316 Stainless Steel: Known as “Marine Grade,” this alloy contains molybdenum, providing exceptional resistance to chlorides (salt spray) and industrial chemicals.
- A4-70 Cold-Worked Strength: Precision-manufactured to meet a minimum tensile strength of 700 MPa, ensuring structural reliability under dynamic fall-arrest loads.
- Anti-Galling Treatment: Optimized surface finish to reduce the risk of thread galling during high-torque installations.
Technical Specifications | M12 & M16 Options
| Specification | M12 Hardware | M16 Hardware |
|---|---|---|
| Thread Diameter | 12.0 mm | 16.0 mm |
| Thread Pitch | 1.75 mm (Standard Coarse) | 2.0 mm (Standard Coarse) |
| Material Grade | 316 / A4-70 Stainless Steel | 316 / A4-70 Stainless Steel |
| Tensile Strength | 700 N/mm² | 700 N/mm² |
| Yield Strength | 450 N/mm² | 450 N/mm² |
| Hex Actuation | 19.0 mm A/F | 24.0 mm A/F |
Structural Advantage
The GRXNG143 series is designed to integrate seamlessly with Groxx G-Anchors, I-Brackets, and H-Frames.
- M12 Options: Typically utilized for primary bracket-to-rung or bracket-to-clamp connections where precision and high shear strength are required.
- M16 Options: Engineered for heavy-duty structural anchoring into concrete or primary steel members, providing maximum pull-out resistance for multi-user lifeline extremities.
Compliance & Quality Control
- ISO 3506-1: Conforms to mechanical property requirements for corrosion-resistant stainless steel fasteners.
- DIN 931 / 933: Available in both partially threaded (hex bolt) and fully threaded (set screw) configurations.
- Traceability: Every batch is quality-tested to ensure material composition and load-bearing capacities align with global fall protection standards.
Application Guidelines
Installation Note: To ensure maximum service life and safety, Groxx recommends the use of 316 Stainless Steel Nyloc nuts and washers for all GRXNG143 installations to prevent vibration-induced loosening. In highly corrosive coastal environments, the application of a nickel-based anti-seize lubricant is advised during assembly.
