Groxx Single Person Cradle

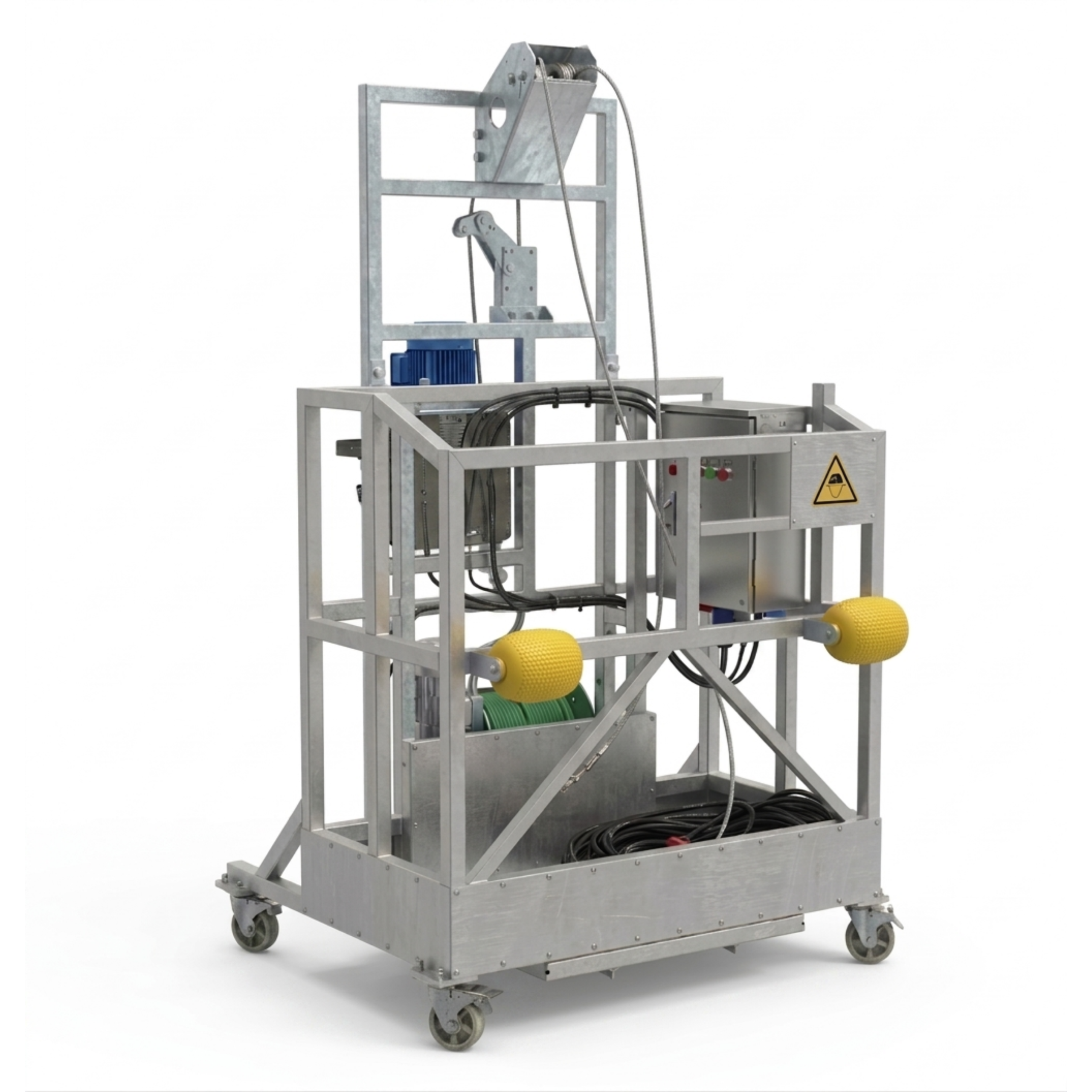

Groxx Single Person Cradle | GGRXSPC1 Compact Motorized High-Altitude Suspended Platform System The Groxx Single Person Cradle (Model Number: GGRXSPC1) is an industrial-grade, single-operator motorized suspended access platform engineered for vertical facade maintenance, high-rise window washing, an…
Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.
Specifications
Groxx Single Person Cradle | GGRXSPC1
Compact Motorized High-Altitude Suspended Platform System
The Groxx Single Person Cradle (Model Number: GGRXSPC1) is an industrial-grade, single-operator motorized suspended access platform engineered for vertical facade maintenance, high-rise window washing, and specialized structural installation tasks. Combining a robust hot-galvanized mild steel core chassis with lightweight, high-tensile aluminum alloy enclosure panels, this compact system delivers maximum mobility and reduced self-weight for deep vertical ascents.
Core Performance and Safety Systems
- Deep High-Altitude Ascent Reach: Formally rated to handle high-elevation structural operations with a maximum lifting height capacity of up to 150 meters.
- Regulated Lifting Kinematics: Driven by an integrated heavy-duty traction hoist system delivering a stable, smooth vertical ascent and descent speed between 7 and 9 meters per minute.
- Dual-Risk Fall Mitigation: Equipped with an intelligent mechanical safety lock featuring comprehensive anti-tilt monitoring alongside rapid anti-breakage locking engagement to instantly secure the cradle in place if line tension shifts.
- Centralized Cable Management: Features an active, high-capacity onboard rope reel system driven by an independent motor to ensure clean, tangle-free winding of the primary steel rope.
Technical Specifications
1. Structural and General Parameters
| Feature | Specification / Technical Target |
| Model Number | GGRXSPC1 (Reference Parameter Code: SPC120) |
| Product Classification | Single Man Self-Powered Cradle |
| Standard | Designed to EN 1808:2015 suspended access equipment — certificate on request |
| Safe Working Load (SWL) | 120 kilograms |
| Physical Dimensions (Length by Width by Height) | 1355 millimeters by 1355 millimeters by 2365 millimeters |
| Internal Basket Clearance Width | 1200 millimeters |
| Internal Basket Structural Height | 2115 millimeters |
| Chassis Metallurgy | Mild Steel finished with Hot Galvanization |
| Enclosure Panels | Lightweight High-Tensile Aluminum Alloy |
2. Mechanical and Electrical Subsystems
| Subsystem Component | Technical Parameter Matrix |
| Traction Hoist Unit | Model: LTD6.3 |
| Mechanical Safety Lock | Model: LSB30B (Anti-tilt plus Anti-breakage protection) |
| Primary Safety Cable | 8.3 millimeters diameter Steel Wire Rope (Model: T4by31 specialized series) |
System Component Breakdown
The single-person cradle is delivered as a comprehensive, field-ready assembly comprising the following primary safety and structural components:
- LTD6.3 Traction Hoist: The high-torque heart of the vertical drive path, engineered for repeatable duty cycles.
- LSB30B Safety Lock: A rapid-response mechanical fall-interception brake that monitors platform equilibrium.
- Weatherproof Control Box: Centralized electrical distribution hub managing operator commands, emergency stop functions, and line power phase tracking.
- Heavy-Duty Electrical Cable: Industrial-grade, high-flex main power tether designed to feed constant voltage over extensive lengths.
- Safety Limit Switch: Electro-mechanical contact sensor providing automated top-of-travel stop controls to avoid over-hoisting.
- Ground Transit Caster Wheels: Non-marking swivel casters supporting simple manual steering and positioning when shifting across ground-level staging zones.
- Motorized Rope Reel: Driven by an independent motor to ensure clean, automated winding of the primary steel rope.
- Anti-Collision EVA Rollers: High-density, bright yellow ethylene-vinyl acetate bumpers positioned on the exterior skin to shield fragile building glazing from scrapes or impact markings during tracking.
The Groxx Advantage
- Space-Saving Footprint: The ultra-compact 1355 millimeter by 1355 millimeter external envelope allows single operators to easily access narrow lightwells, architectural recesses, and complex facade geometries where larger multi-person platforms cannot fit.
- Rigid Hybrid Defense: By pairing a hot-dip galvanized mild steel frame with aluminum alloy face panels, the cradle withstands extreme high-humidity marine or urban rooftop environments without accelerating corrosion, maintaining a stable 120 kilograms safe working load.
- Redundant Safety Engineering: Incorporating the dual-threat LSB30B safety lock alongside top-travel limit switches ensures immediate protection against unbalanced weight or structural rope fatigue, giving single operators full confidence during deep 150-meter facade deployments.
