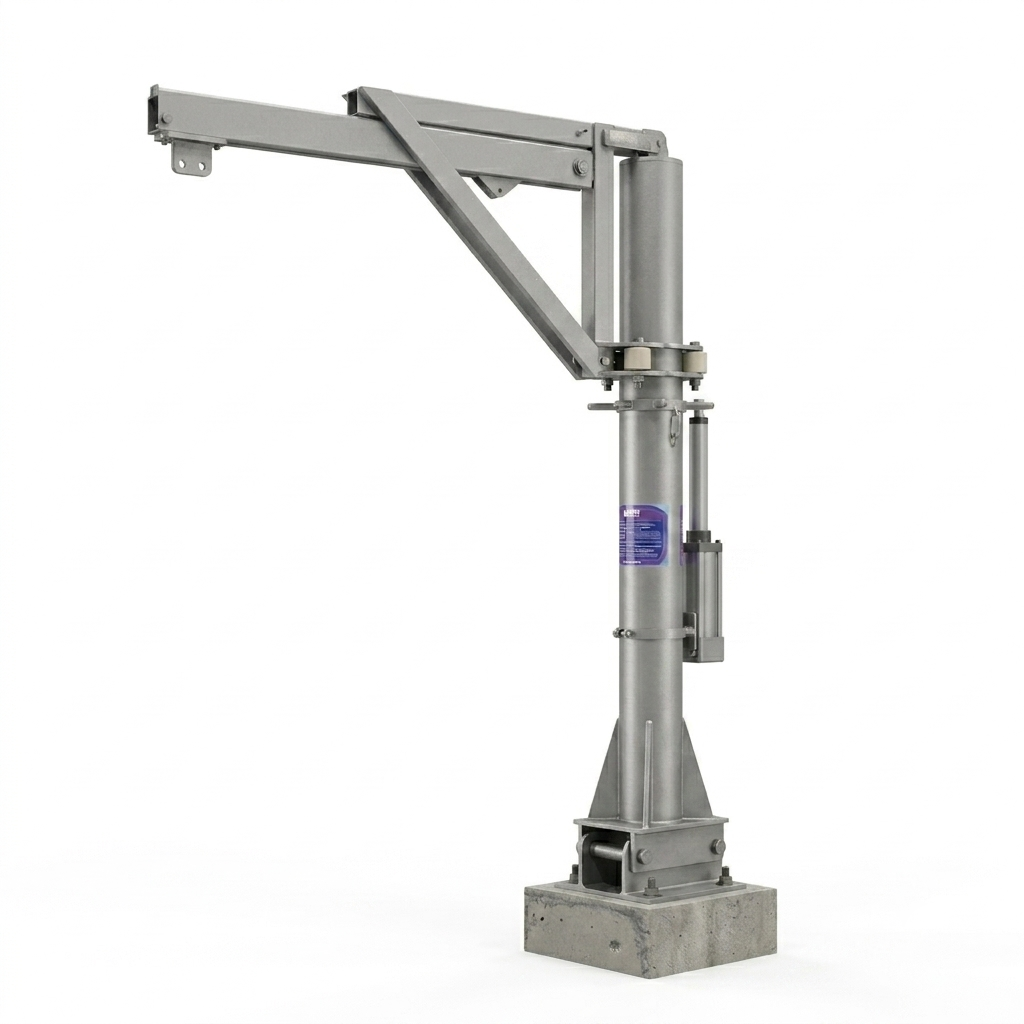

The Groxx Mini Davit Arm (Model NO: GRXLPD90) is a high-strength, low-profile industrial crane system engineered for architectural maintenance, facade access, and localized material hoisting operations. Combining a lightweight, high-tensile structural aluminum upper assembly with a heavy-duty galvanized steel foundation matrix, this compact davit system provides stable load-bearing performance and smooth rotational control over edge boundaries.
High-Strength Aluminum Upper Assembly: The main column post, structural boom, and integrated monorail tracking are manufactured from premium Aluminum 6061/T6. This significantly minimizes the system’s dead weight for easier manual handling and installation while ensuring exceptional structural rigidity.
Heavy-Duty Galvanized Steel Foundation: The primary fixed mounting points, rotating assembly, and base structural hub are forged from premium Hot-Dip Galvanized (HDG) Q345 / Q345-B Carbon Steel. This combination provides high tensile strength to withstand extreme overturning moments while delivering multi-decade resistance to atmospheric rust, corrosion, and weathering.
Smooth Rotational Slewing Kinematics: Features an integrated manual slewing handle and turning kit component to facilitate smooth, controlled rotation when swinging equipment or materials over roof boundaries and parapets.
Optimized Load Distribution Footprint: The heavy-duty $400 \times 400\text{ mm}$ base plate utilizes a multi-bolt anchoring pattern engineered to safely transfer compression, tension, and shear loads into the concrete substrate or supporting structure.
| Feature | Specification / Technical Target |
| Model Number | GRXLPD90 |
| Product Classification | Compact Structural Davit Arm System |
| Safe Working Load (SWL) | 250 kg (250 KGS) |
| System Outreach / Reach | 1500 mm |
| Total System Height | 1815 mm |
| Pivot Column Height | 1599 mm |
| Column / Post Profile | Aluminum 6061/T6, |
| Monorail Track Profile | Aluminum 6061/T6 |
| Boom Configuration | High-Tensile Aluminum 6061/T6 |
| Fixed Mount Point & Turning Hub | HDG Steel Q345-B |
| Davit Base Dimensions | HDG Steel Q345 |
The system features precise physical geometries optimized for tight industrial envelopes and structural parapet environments:
Outreach Radius: Offers a rigid 1500 mm horizontal clearance from the centerline of the vertical post to the terminal load connection points, ensuring ample clearance from building facades.
Structural Clearance: Standardized with an overall height of 1815 mm and an intermediate turning height clearance of 1599 mm, providing excellent vertical clearance for personnel or material baskets.
Base Mounting Pattern: Engineered with structural gusset reinforcements and an anchor layout featuring standard $\varnothing 40\text{ mm}$ clearances for heavy-duty fixing fasteners.
Strength-to-Weight Optimization: Utilizing an engineered $\varnothing 200 \times 8\text{ mm}$ aluminum column ensures the weight of the portable upper arm components remains low. This reduces worker fatigue during setup and teardown while comfortably delivering a 250 kg Safe Working Load.
Industrial Corrosion Defenses: By marrying an anodized structural aluminum upper assembly with hot-dip galvanized steel base hardware, the crane prevents galvanic corrosion and stands up to harsh coastal, marine, and urban rooftop environments.
Flawless Shuttling Integration: The dedicated $116 \times 70\text{ mm}$ aluminum monorail profile allows for the direct attachment of compatible manual material trolleys or traveling personal hoists, providing fluid movement along the load path.
