Telescopic Boom with Approaching System

Building Maintenance System

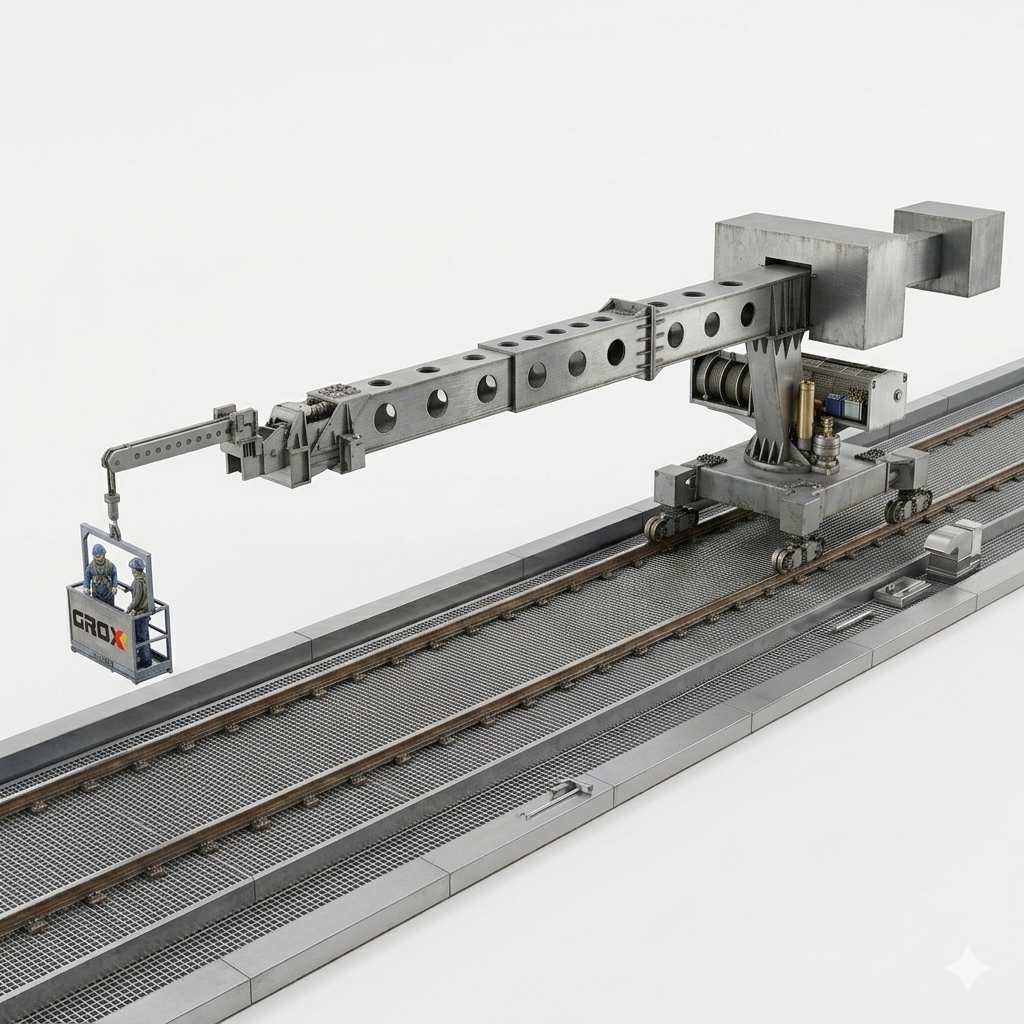

GRXTBAS100 Telescopic Boom with Approaching System

GRXTBAS100 Telescopic Boom with Approaching System The Groxx GRXTBAS100 is a highly engineered, track-mounted Building Maintenance Unit (BMU) designed for complex architectural facades. This system integrates a high-reach telescopic boom with a specialized approaching mechanism to allow maintenance …

StandardEN 1808:2015 suspended access equipment
SKUGRXTBAS100
Tagsbmu

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

GRXTBAS100 Telescopic Boom with Approaching System

The Groxx GRXTBAS100 is a highly engineered, track-mounted Building Maintenance Unit (BMU) designed for complex architectural facades. This system integrates a high-reach telescopic boom with a specialized approaching mechanism to allow maintenance personnel to access recessed areas and navigate structural setbacks on high-rise buildings.

Core Performance Features

  • Telescopic Boom Dynamics: The heavy-duty boom provides extensive horizontal and vertical reach, featuring a rotation speed of approximately 6.1 m/min across a full ±180° range for total facade coverage.
  • Precision Approaching System: Specifically designed with a 4.2 m cradle approach, the system allows the suspended platform to move inward toward the building face, bypassing structural obstacles and ensuring the cradle is perfectly positioned for work.
  • Advanced Cradle Kinematics: The 3-meter cradle is capable of independent rotation of ±90° at 6 m/min, providing operators with the agility needed to follow complex building contours.
  • Integrated Dual-Hoisting: Features a primary cradle rated for 250 kg and an auxiliary hoist capable of lifting 500 kg, facilitating both personnel access and material handling (such as glass replacement).

Technical Specifications

Feature Specification
Model Number GRXTBAS100 (Ref: CWG250S270G500)
Moving Speed (Traversing) ≈ 5.8 m/min on all rails
Standard EN 1808:2015 suspended access equipment
Cradle Lifting Speed ≈ 8 m/min
Cradle Dimensions 3000 mm x 700 mm x 1100 mm
Total System Weight 62,000 kg (±10%)
Track Interface 300 mm x 300 mm Structural Steel
Power Requirement 3 Phase

Safety & Structural Integrity

  • Multi-Core Wire Rope: The system utilizes a 13 mm x 6 pcs steel wire rope assembly integrated with a copper conductor to ensure reliable hoisting and constant communication between the cradle and the roof car.
  • High-Capacity Braking: All moving parts, including the telescopic extension and the rotation arm, are equipped with automatic fail-safe braking systems.
  • Structural Robustness: The 62-ton unit is supported by a heavy-duty 300×300 steel track, engineered to manage the significant moments and dynamic loads generated during boom extension.

Compliance & Standards

The GRXTBAS100 is designed and tested to comply with international safety regulations for permanent access equipment:

  • EN 1808:2015: Meets European safety requirements for Suspended Access Equipment (SAE), covering design, calculations, and stability.
  • Machinery Directive 2006/42/EC: Adheres to essential health and safety requirements for motorized industrial machinery.
  • ISO 9001 Quality Management: Manufactured under strict quality control processes to ensure long-term operational reliability in extreme environments.

Application

This system is the ideal solution for modern skyscrapers with irregular shapes, deep recesses, or significant overhangs. The combination of the telescopic boom and the 4.2-meter approaching system ensures that no part of the building facade remains inaccessible to maintenance teams.
