SKU GGRXEMB800 Spare Parts

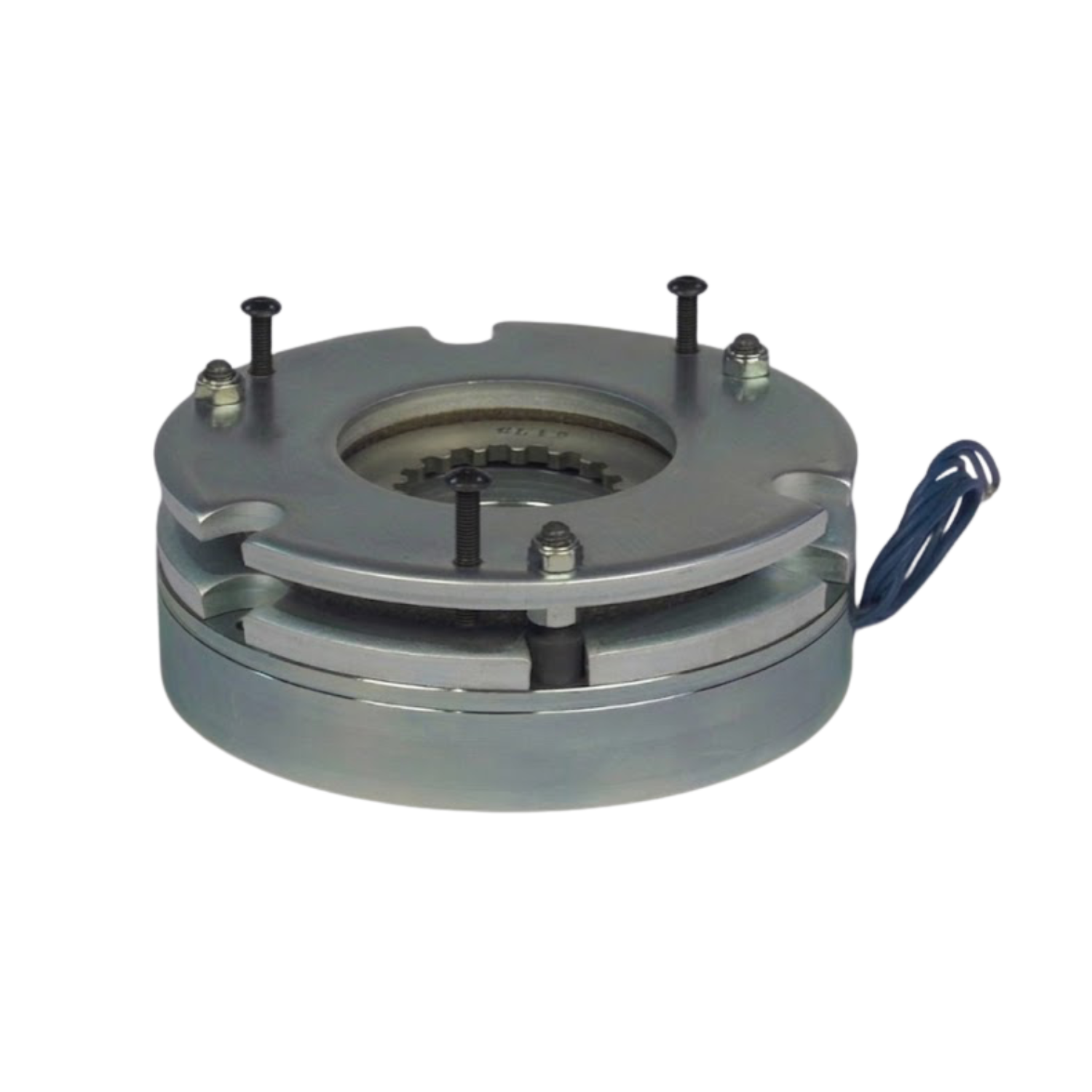

Electromagnetic Brake

Electromagnetic Brake

Product description

Groxx Traction Hoist Components | GGRXEMB800 Electromagnetic Brake
The Groxx GGRXEMB800 is a heavy-duty, fail-safe electromagnetic brake engineered specifically for 800 kg capacity traction hoists. Installed on the primary motor shaft, the GGRXEMB800 serves as the principal holding and parking brake for suspended access platforms and swing stages. Designed on a “fail-safe” power-off principle, it automatically engages whenever electrical power is cut or interrupted, instantly locking the hoist drive mechanism to prevent accidental descent.
Primary Functions
  • Fail-Safe Holding & Parking: Applies immediate holding torque when de-energized, locking the suspended load securely in place at rest or during power outages.
  • Dynamic Emergency Arrest: Rapidly decelerates and stops the 800 kg load in the event of an emergency stop trigger or electrical fault.
  • Controlled Manual Release: Features an integrated manual release lever allowing operators to safely release the brake and lower the platform during emergency power loss scenarios.
  • Motor Shaft Stabilization: Eliminates rotational drift and motor back-driving under static suspended loads when the hoist is idle.
Technical Specifications
Feature Specification
Model Number GGRXEMB800
Rated Hoist Capacity 800 kg Traction Hoist Systems
Operating Principle Power-Off Spring-Applied Electromagnetic Engagement
Coil Voltage Standard Industrial AC/DC (Customizable per Hoist Spec)
Brake Lining Material Heavy-Duty Non-Asbestos Composite
Static Holding Torque Rated for 150% + Overload Factor on 800 kg Load
Weight 3.65 kg
Key Technical Features
  • Power-Off Spring-Applied Security: Utilizes high-tensile internal compression springs to force the armature plate against the friction disc automatically when electrical coil power drops.
  • Encapsulated Electromagnetic Coil: Vacuum-impregnated coil insulation resists moisture, dust, and electrical surges common on harsh construction jobsites.
  • Manual Emergency Lever: Equipped with a heavy-duty manual release arm that allows controlled, gravity-assisted lowering during site power failures.
  • Adjustable Air-Gap Construction: Engineered with accessible shims/adjustment points to easily reset the air gap as the friction lining wears over time, maximizing operational longevity.
The Groxx Advantage
The GGRXEMB800 Electromagnetic Brake provides the frontline safety barrier for 800 kg suspended platforms. By combining power-off fail-safe engineering with heavy-duty thermal resistance, Groxx ensures instant holding response, continuous site safety, and seamless emergency control when working at extreme heights.

Downloads and manuals

PDF Data Sheet PDF Certificate of Conformance
