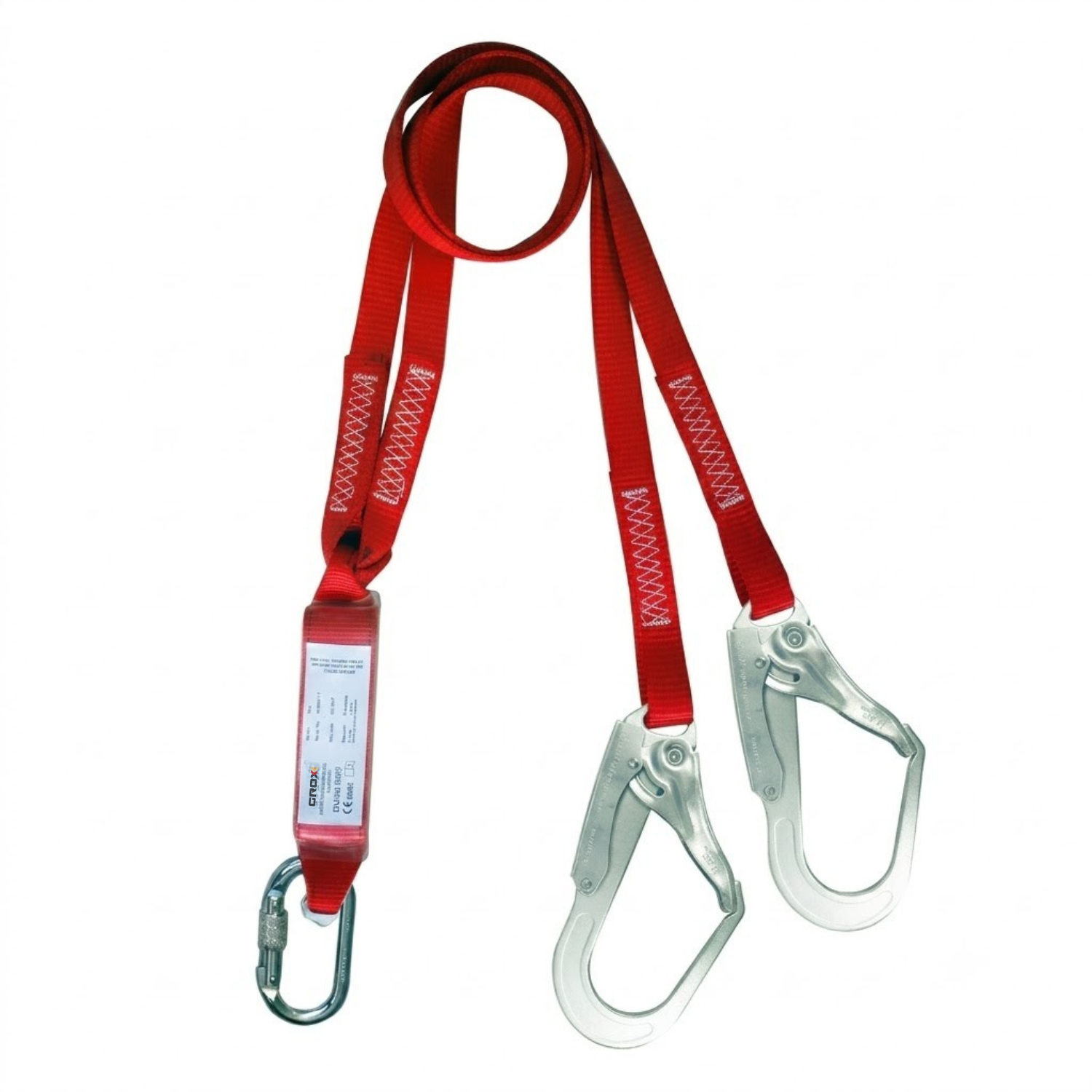

Basix Double Hook Lanyard with Shock Absorber

Double Hook Energy Absorbing Lanyards EN 355

Basix Double Hook Lanyard with Shock Absorber

Basix Double Hook Lanyard with Shock Absorber | AL80010-L Twin-Leg Energy-Absorbing Fall Protection Lanyard The Basix Double Hook Lanyard with Shock Absorber is a high-reliability personal protective equipment (PPE) assembly designed for fall arrest applications. Engineered with a twin-leg design, t…

StandardEN 355 energy absorber with EN 354 lanyard and EN 362 connectors
SKUAL80010-L
Tagsdouble hook lanyard, lanyard

Pricing: trade prices are shown to registered customers. Log in to the customer portal, or ask us for a quote with certification documents.

Specifications

Basix Double Hook Lanyard with Shock Absorber | AL80010-L

Twin-Leg Energy-Absorbing Fall Protection Lanyard

The Basix Double Hook Lanyard with Shock Absorber is a high-reliability personal protective equipment (PPE) assembly designed for fall arrest applications. Engineered with a twin-leg design, this integrated energy absorber lanyard provides continuous fall protection—enabling workers to maintain a safe 100% tie-off position while traversing scaffolding, steel frameworks, and elevated industrial structures.

Core Performance & Hardware Configurations

  • 100% Tie-Off Twin Design: Features a double-leg configuration that enables workers to stay securely hooked to one structural anchor point while transitioning the second connector to the next point of safety.
  • Integrated Energy Absorber: Incorporates a specialized internal shock-absorbing module measuring 45mm in width. In the event of an accidental fall, the tearing web system deploys smoothly to dissipate deceleration forces, minimizing impact loads transferred to the user’s body.
  • Forged Steel Scaffold Termination: Equipped with two forged steel scaffold hooks (Model: H1201) at the terminal ends of the lanyard loops. These large-gate hooks provide easy, secure connections directly onto structural scaffolding tubes and overhead iron frameworks.
  • Harness Connection Interface: The anchorage-absorber end is fitted with a rugged steel carabiner (Model: C1101), providing a stable, high-strength connection to the back dorsal D-ring of a full body harness.

Technical Specifications

Feature Specification / Value
Model Number AL80010-L (Ref Profile: EAL20206)
Product Category Energy Absorbing Lanyard
Standard EN 355 energy absorber with EN 354 lanyard and EN 362 connectors
EN requirementMax. braking force 6 kN; max. extension 1.75 m; static 15 kN (absorber), 22 kN (textile lanyard); 100 kg test mass
Lanyard Strap Material Heavy-Duty Polyester Webbing
Lanyard Webbing Width 28mm
Energy Absorber Width 45mm
Maximum Total Length Max 2 Meters (Including all connectors)
Maximum Rated Load 100 kg
Absorber End Connector 1 Steel Carabiner (C1101)
Lanyard Leg Connectors 2 Forged Steel Scaffold Hooks (H1201)
Color Customization Webbing color options available via nomenclature

Compliance & Regulatory Standards

The AL80010-L system is engineered, manufactured, and comprehensively validated to fulfill international personal fall arrest criteria:

  • EN 355:2002 Compliance: Fully conforms to European standards regulating energy absorbers used in personal protective equipment setups against falls from heights.
  • EU Regulation 2016/425 Module D: Production processes are strictly audited and controlled under Module D quality assurance protocols, ensuring complete batch consistency and manufacturing trace integrity.

The Basix Advantage

  • Woven Durability: Fabricated from 28mm wide high-tensile polyester webbing, the strap matrix provides exceptional resistance to surface abrasions, UV degradation, and job site moisture.
  • Optimized Clearance Envelope: Yielding a maximum working length of 2 meters including hardware, the lanyard provides ample maneuvering freedom along structural frames without introducing unnecessary line drag or trip hazards.
  • Adaptive Customization: Offers an optional variety of alternative webbing colors and custom connector configurations based on specific operational requirements or corporate safety schemes.
