SKU GGVA8902 Fall Arrest System, Vertical Lifeline vertical anchor vertical lifeline

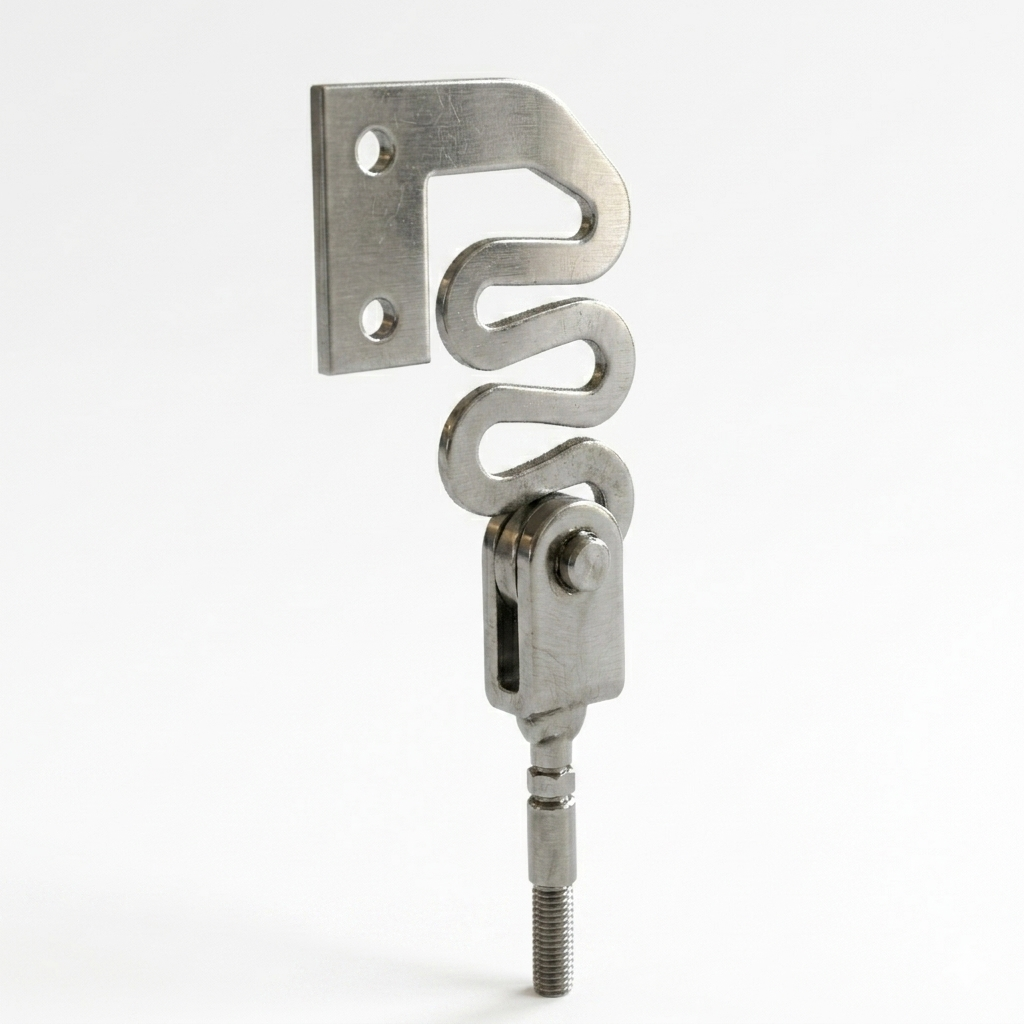

V - Line Spring Anchor

V - Line Spring Anchor

Product description

V-Line Spring Anchor | Product Specifications
Core Features (tensioner not included)

  • Vertical Line Integration: Designed as a top-extremity mounting bracket for vertical anchor lines, specifically engineered for ladder-top installations.

  • Dual-Function Design: Features a dedicated, fall-arrest rated anchor point integrated at the top of the post for immediate safety connection.

  • Universal Compatibility: The versatile bracket geometry allows for secure attachment to both round and squareladder rungs.

  • Integrated Shock Absorption: Built-in energy absorber reduces impact forces, providing a smarter and more efficient safety solution.

Technical Specifications
Specification Details
Rung Diameter Range Ø16.0mm to Ø52.0mm
Minimum Breaking Strength (MBS) 15 kN
Standard Compliance EN 795:2012 Type A
Material Composition

  • Mounting & Fittings: Polished 304 Stainless Steel for superior corrosion resistance.

  • Anchor Point w/ built in spring absorber: Polished 304 Stainless Steel.

Note: This system provides a streamlined installation process, combining durability with a high-polish finish suitable for harsh environments.
