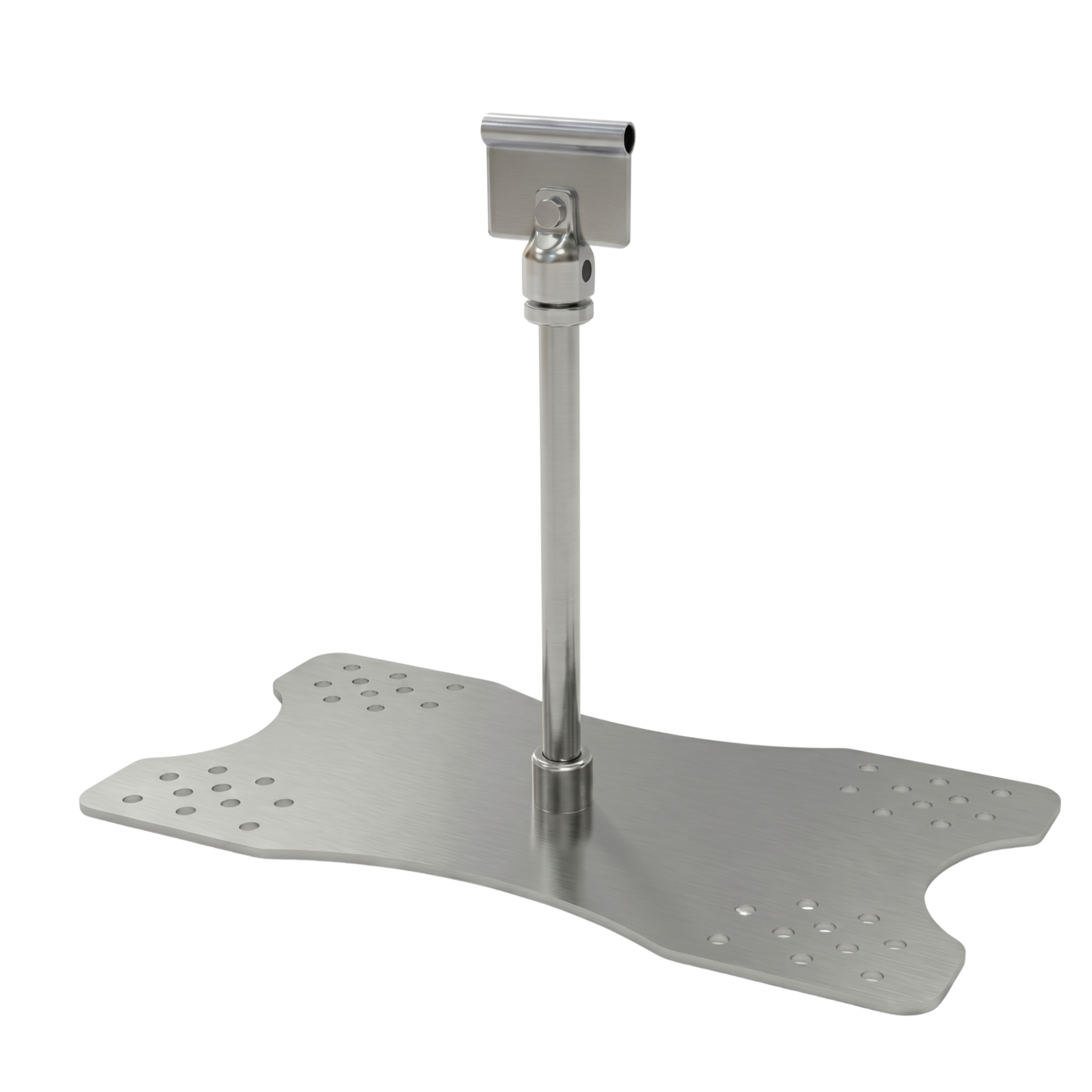

The Groxx GGIMEA053 (formerly AA2602060005) is a streamlined, internal-post anchorage solution specifically designed to serve as an intermediate support for horizontal lifeline systems on trapezoidal roofs. By elevating the connection point above the roof ribs, it ensures smooth traveler movement while distributing lateral and vertical loads across the profiled metal substrate. This anchor is optimized for projects requiring a balance of high structural strength and a low-profile installation.
Elevated Point-of-Contact: The vertical internal post suspends the lifeline connection point above the roof profile, preventing cable drag and protecting the roof’s standing seams or ribs from abrasive wear.
Optimized Load Distribution: Engineered with a wide-span baseplate (), the unit effectively disperses forces across multiple ribs of the trapezoidal sheet, minimizing localized stress on the metal skin.
Advanced Waterproofing: The system utilizes heavy-duty waterproof gaskets placed between the baseplate and the roofing substrate. When combined with EPDM-sealed fasteners, it ensures a leak-proof termination that maintains the building’s envelope integrity.
Precision Engineering: Featuring high-standard industrial welding, the post is designed to remain perpendicular to the direction of force, ensuring the structural assembly maintains its rated capacity during a dynamic fall event.
Substrate Compatibility: Specifically designed for single-skin profiled metal sheets (min. 0.45mm) and the top skin of sandwich panels (min. 0.63mm).
Fixing Requirements: Secured using 8 AL Sealed Blind Rivets (). Alternatively, waterproof self-tapping screws or bolts can be utilized depending on the specific purlin or structural truss configuration.
Versatile Mounting: Compatible with a wide range of structural purlin systems, including Z/C-sections, H-beams, and steel trusses.
The GGIMEA053 is manufactured to meet rigorous international expectations for multi-user fall protection:
Multi-User Certified: Rated for up to 4 simultaneous users, providing high-efficiency safety for maintenance teams.
Extended Service Life: Available in AISI 316 Stainless Steel, offering a 20-year validity period in aggressive industrial or coastal environments (10-year validity for standard 304 variants).
The GGIMEA053 Internal Post Anchor offers a lightweight yet incredibly robust intermediate solution for modern metal roofs. By focusing on a slim-profile internal post design, it provides the necessary elevation for lifeline travelers while maintaining a minimal aesthetic and physical footprint. It is the definitive choice for installers seeking a high-capacity, multi-user anchor that is exceptionally easy to handle and install.
