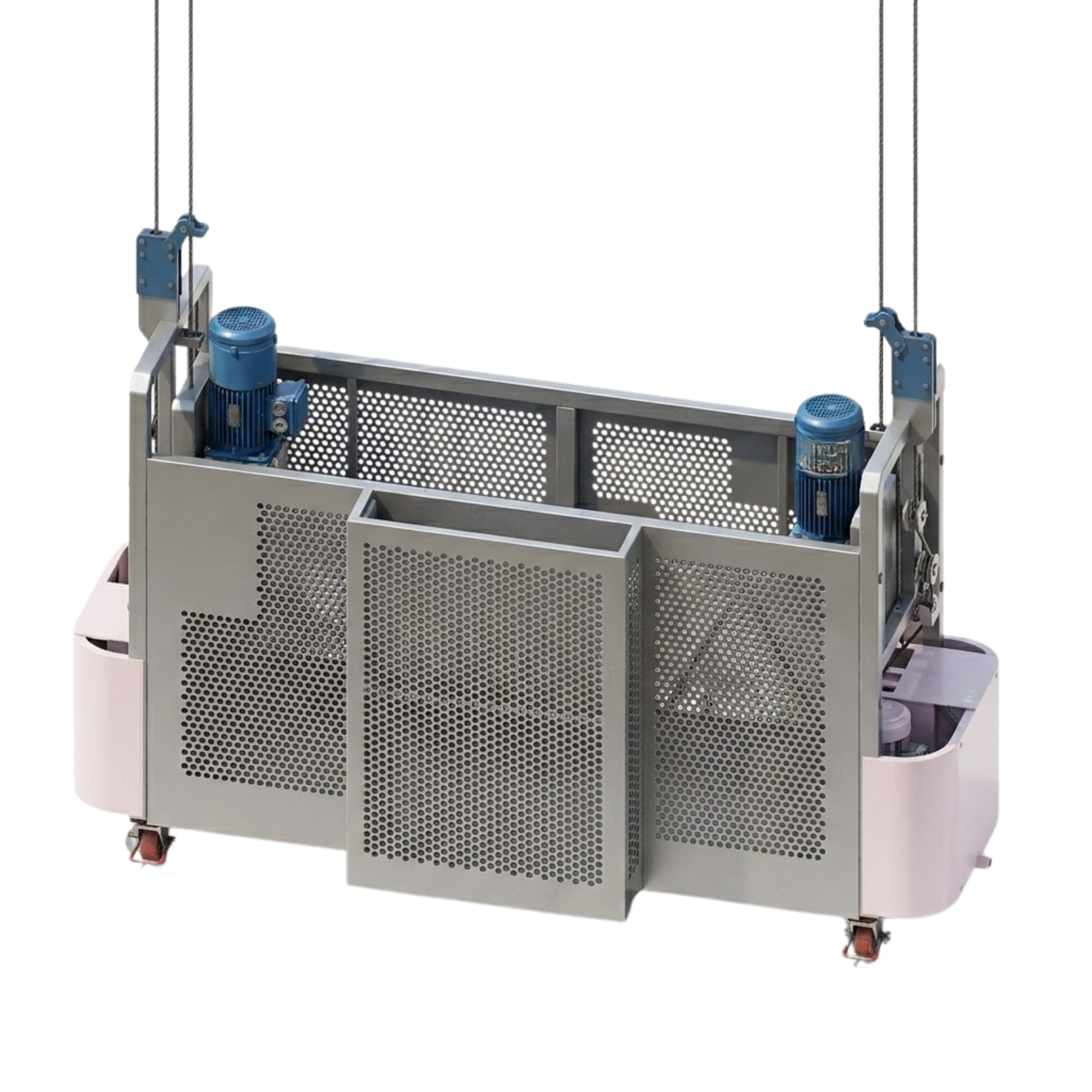

The Groxx Self-Powered Gondola Basket (Model Number: GGSGB2) is an industrial-grade, 2-meter length motorized suspended access platform engineered for building facade maintenance, high-rise window washing, and structural installation tasks. Featuring a high-tensile hot-galvanized mild steel chassis combined with lightweight aluminum alloy cladding panels, this robust system delivers an optimal balance of structural strength and reduced self-weight for deep vertical ascents.
High-Altitude Reach Optimization: Formally rated to handle high-elevation operations with a maximum lifting height capacity of up to 150 meters.
Uniform Lifting Kinematics: Driven by an integrated heavy-duty traction hoist system delivering a stable, smooth vertical ascent and descent speed of 9.5 meters per minute.
Dual-Risk Fall Mitigation: Equipped with an intelligent mechanical safety lock that includes anti-tilt monitoring alongside comprehensive anti-breakage locking engagement to instantly secure the basket in place if line tension shifts.
Motorized Cable Management: Features an active, high-capacity onboard rope reel system driven by an independent motor to ensure clean, tangle-free winding of the primary steel rope.
| Feature | Specification / Technical Target |
| Model Number | GGSGB2 (Replaces legacy code: SPC250/2.0) |
| Platform Length | 2 meters |
| Safe Working Load (SWL) | 250 kilograms |
| Physical Dimensions (Length by Width by Height) | 2140 millimeters by 710 millimeters by 1160 millimeters |
| Chassis Metallurgy | Mild Steel finished with Hot Galvanization |
| Enclosure Panels | Lightweight High-Tensile Aluminum Alloy |
| Total System Height | 2045 millimeters (from base rail to upper pulley guide) |
| Subsystem Component | Technical Parameter Matrix |
| Traction Hoist Unit | Model: LTD6.3 |
| Mechanical Safety Lock | Model: LSB30B (Anti-tilt plus Anti-breakage protection) |
| Rope Reel Drive Motor | Model: MY71D-4 |
| Primary Safety Cable | 8.3 millimeters diameter Steel Wire Rope (Model: T4by31 specialized series) |
The self-powered gondola basket is delivered as a comprehensive, field-ready assembly comprising the following primary safety and structural components:
LTD6.3 Traction Hoist: The high-torque heart of the vertical drive path, engineered for repeatable duty cycles.
LSB30B Safety Lock: A rapid-response mechanical fall-interception brake that monitors platform equilibrium.
Weatherproof Control Box: Centralized electrical distribution hub managing operator commands, emergency stop functions, and line power phase tracking.
Heavy-Duty Electrical Cable: Industrial-grade, high-flex main power tether designed to feed constant voltage over extensive lengths.
Safety Limit Switch: Electro-mechanical contact sensor providing automated top-of-travel stop controls to avoid over-hoisting.
Ground Transit Caster Wheels: Non-marking swivel casters supporting simple manual steering and positioning when shifting across ground-level staging zones.
Anti-Collision EVA Rollers: High-density, bright yellow ethylene-vinyl acetate bumpers positioned on the exterior skin to shield fragile building glazing from scrapes or impact markings during tracking.
Rigid Hybrid Framework: By pairing a hot-dip galvanized mild steel floor truss with aluminum alloy face panels, the cradle withstands extreme high-humidity marine or urban environments without accelerating corrosion, maintaining a high 250 kilograms lifting capacity.
Autonomous Cable Management: The dedicated 0.37 kilowatt motorized rope reel eliminates the hazard of dangling loose steel lines below the basket, significantly reducing the potential for wire entanglement with lower building structures or power lines.
Redundant Safety Engineering: Incorporating the dual-threat LSB30B safety lock and top-travel limit switches ensures immediate protection against unbalanced loads or structural rope fatigue, giving operators full confidence during deep 150-meter facade deployments.
